SZVAV - Operates in DX and Economizer Cooling Modes of Operation
Single Zone VAV operates in DX and economizer cooling modes of operation when configured for
System Type: VVZT (variable speed indoor fan type) or CVZT (multi-speed indoor fan type). A valid space temperature and discharge air temperature sensor are required inputs. If the discharge air temperature input becomes invalid, the control automatically reverts to Single Loop Space Temperature Control. Symbio™ 700 operates in Single Loop Space Temperature Control in heating modes when
staged gas heat and staged electric heat are configured.
Single Zone VAV is a control method of space temperature control that operates the supply fan at the
lowest allowed cooling capacity required to satisfy the load in the space. As cooling capacity increases, the supply fan speed will increase accordingly until it reaches 100% of its allowed range of
operation.
When there is no demand for heating or cooling the supply fan operates at the minimum speed setting

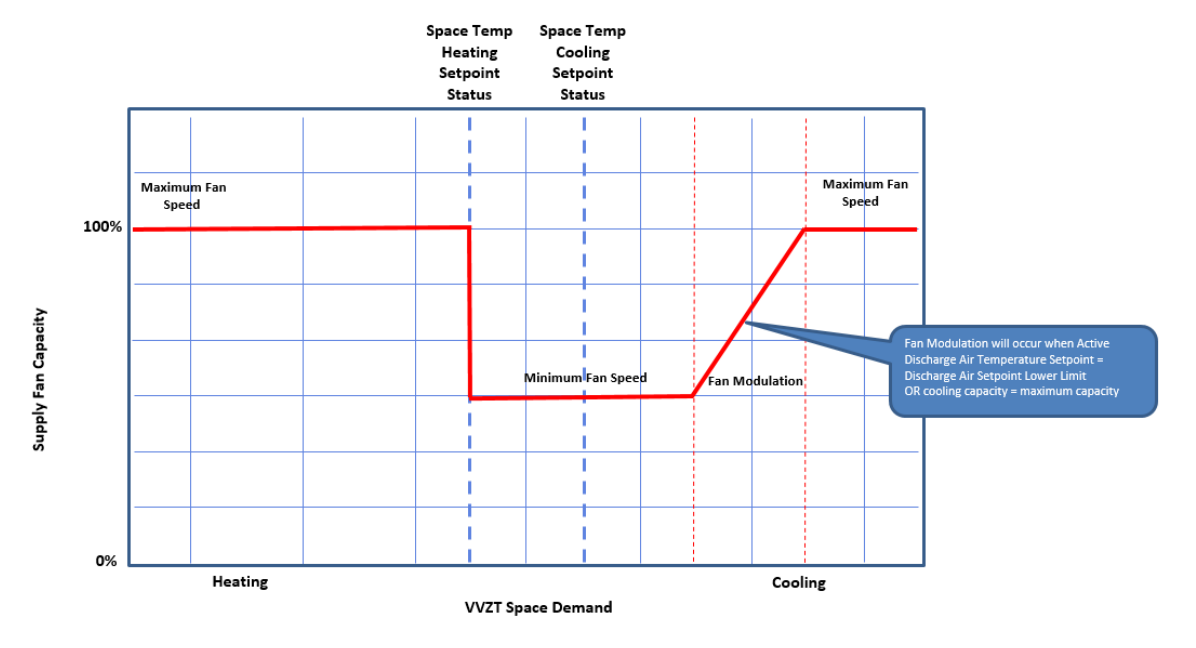

while providing ventilation according to occupancy setpoints, see the following figure. Alternately, the
supply fan can be set up to cycle off when there is no demand for heating or cooling via Supply Fan
Configuration Command setting.
