Control Options
| Control Option | Enable Conditions | Optional Sensors Required |
| Comparative Enthalpy |
Outside Air Enthalpy < Return Air Enthalpy – Econ Enthalpy Offset and Outside Air Temperature < Economizer Dry Bulb Setpoint – Econ Dry Bulb Offset |
Outdoor Air Temperature Sensor Outdoor Air Humidity Sensor Return Air Temperature Sensor Return Air Humidity Sensor |
| Reference Enthalpy |
Outside Air Enthalpy < Reference Enthalpy Setpoint – Econ Enthalpy Offset and Outside Air Temperature < Economizer Dry Bulb Setpoint - Econ Dry Bulb Offset |
Outdoor Air Temperature Sensor Outdoor Air Humidity Sensor |
| Dry Bulb |
Outside Air Temperature < [Economizer Outdoor Air Enable Setpoint BAS - Economizer Dry Bulb Enable Offset] |
Outdoor Air Temperature Sensor |
| Differential Dry Bulb |
Outside Air Temperature < RA Temp - Economizer Dry Bulb Enable Offset - Economizer Dry Bulb Disable Return Air Offset |
Outdoor Air Temperature Sensor Return Air Temperature Sensor |

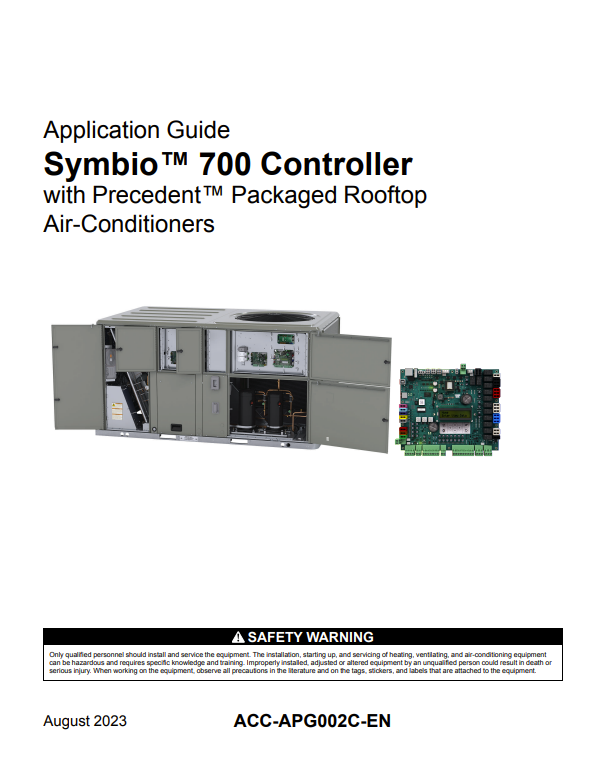

See below to download a PDF of the Symbio 700 Controller Application Guide.
Click the e-library symbol for the latest version
