Roof Curb
Click the e-library symbol for the latest version
| Model Number: | Used With: |
| FIACURB402* | Precedent™ B cabinet (Digit 39 = B) - T/YS*072-120 with 14-inch curb |
| FIACURB802* | Precedent™ B cabinet (Digit 39 = B) - T/YS*072-120 with 18-inch curb |
Introduction
Read this manual thoroughly before operating or servicing this unit. See below to download a PDF of the Roof Curb Guide.
General Information
This manual describes the layout and installation procedures required to properly assemble and install the roof curb.
Each curb package ships unassembled, along with the required hardware and gasket material. Roof insulation, cant strips, flashing (if desired), nails, and sheet metal screws must be furnished by the installing contractor.

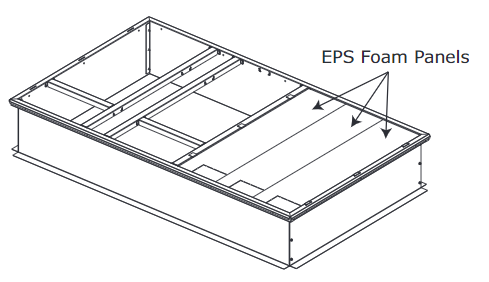

Important: DO NOT discard EPS foam panels included in this kit. They are used for insulating the condenser section of the roof curb. Follow the instructions for installation.
WARNING:
Information in this article is intended for use by individuals possessing adequate backgrounds of electrical and mechanical experience and who comply with all federal, state, and local laws, rules, orders, or regulations related to the installation, service, or repair of a heating or central air conditioning product. Any attempt to install, service, or repair a heating or central air conditioning product may result in personal injury and/or property damage. The manufacturer or seller cannot be responsible for the interpretation of the information contained herein, nor can it assume any liability in connection with its use.
