Drain Pan Removal
Every Precedent™ unit has an easy-to-clean, composite removable dual-sloped drain pan (IAQ). On units with B or C (6 to 12.5T) size cabinets, the drain pan is reversible, allowing installation of the draining trap on either side of the unit.
B.0 and C.0 Cabinets
- Drain pan is reversible and can exit through the base.
D.0 Cabinets
- Drain pan is not reversible.

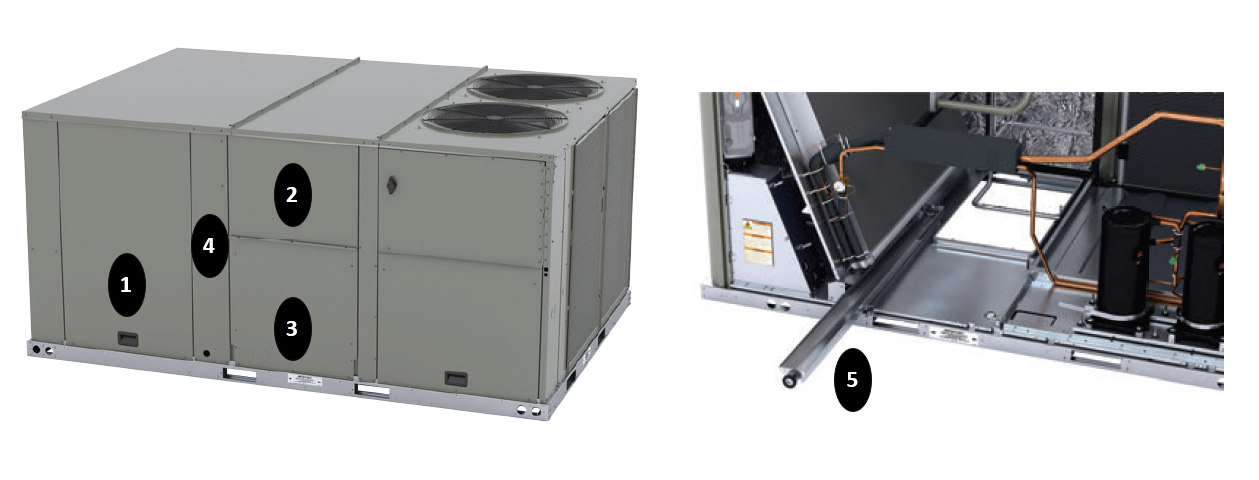

Removal
-
Remove the filter door.
-
Remove the left control box door.
-
Remove the heat section panel.
-
Remove the left center post.
-
Lift the drain pan and pull it towards you.
WARNING:
Information in this article is intended for use by individuals possessing adequate backgrounds of electrical and mechanical experience and who comply with all federal, state, and local laws, rules, orders, or regulations related to the installation, service, or repair of a heating or central air conditioning product. Any attempt to install, service, or repair a heating or central air conditioning product may result in personal injury and/or property damage. The manufacturer or seller cannot be responsible for the interpretation of the information contained herein, nor can it assume any liability in connection with its use.
