Low Leak Economizer Jade Actuator Address
Summary:
Trane Foundation low-leak economizers come with the Honeywell Jade controller with Sylk-enabled communication. The actuator must be addressed to Direct operation with Address 11 for proper operation.
Address:
To set the direction and address for the MS3110J1008 actuator, do the following and see the image below:
- Set the Range/Direction Control Selector to "C"
- Set the Sylk Address Selection to "G"

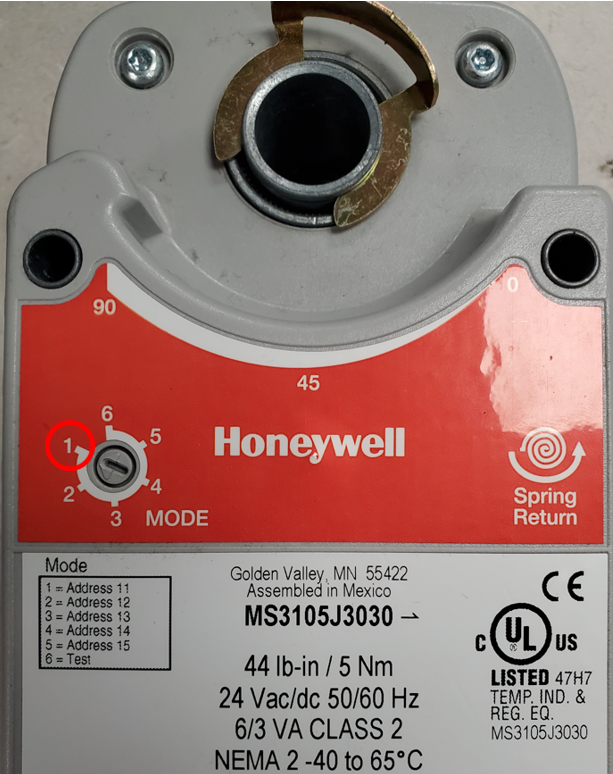

To set the address on the MS3105J3030, change the address dial to position 1, as shown in the image below.
