Symbio 700 2023 DOE Standard B VFD Programming Parameters
To access all parameters from the main menu, follow these steps:
- Press the [Menu] key until the indicator in the display is positioned above "Main Menu."
- Use the [▲] and [▼] keys to navigate through the parameter groups.
- Press [OK] to select a desired parameter group.
- Use the [▲] and [▼] keys to browse through the parameters within the selected group.
- Press [OK] to choose a specific parameter.
- Use the [▲] and [▼] keys to set or change the parameter value.
- Press [OK] to confirm and accept the change.
The * in parameter numbers indicates a group or subgroup of parameters for which the first 1 or 2 numbers are the same. For example, 0-** indicate the group of parameters that all start with 0. 0-0* indicates the subgroup of
parameters that share the first 2 numbers, which is 0-0.

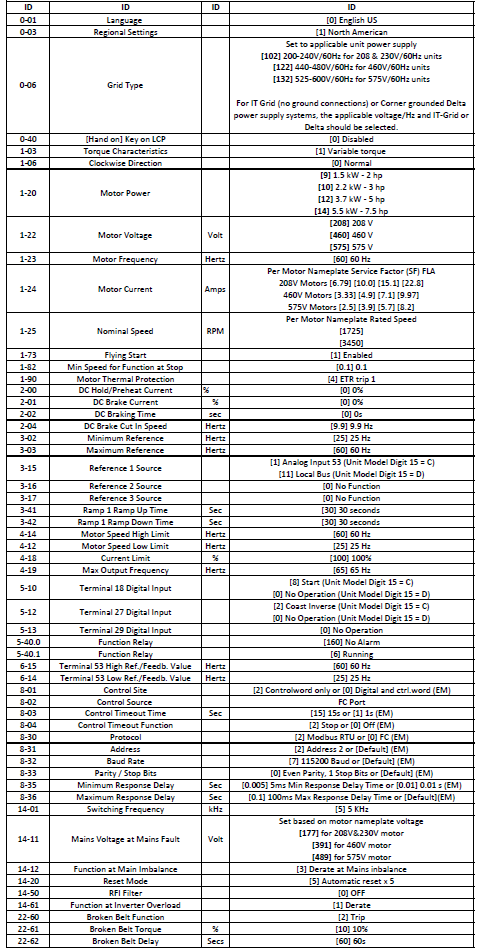

List of Parameters
Please take a look at the attached PDF below.
WARNING:
Information in this article is intended for use by individuals possessing adequate backgrounds of electrical and mechanical experience and who comply with all federal, state, and local laws, rules, orders, or regulations related to the installation, service, or repair of a heating or central air conditioning product. Any attempt to install, service, or repair a heating or central air conditioning product may result in personal injury and/or property damage. The manufacturer or seller cannot be responsible for the interpretation of the information contained herein, nor can it assume any liability in connection with its use.
