Symbio 700 - Low Leak Economizer 6-25 Ton
Summary:

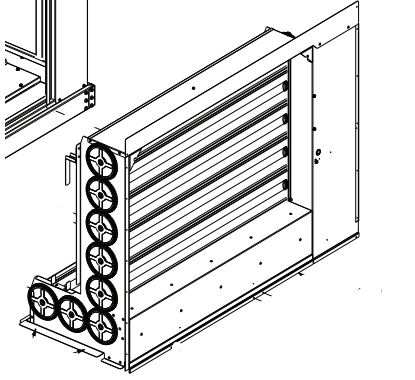

This covers the installation of low leak economizers for 6 to 12.5 ton downflow units in the B and C cabinet (digit 39 = B, C). Symbio 700 supports a 0 to 100 percent economizer damper which requires a discharge air temperature sensor to be installed for economizer cooling. There are four configurable economizer types: fixed dry bulb, differential dry bulb, reference enthalpy, and comparative enthalpy.
| Model Number: | Used With: |
| FIAECON102* | Downflow - T/YS*072-150, T/YH*072-150 |
| FIAECON103* | Downflow - T/YS*180-300, T/YH*180-300, T/YZ*150-300, W/D/G**150-300 |
| FIAECON203* | Horizontal - T/YS*180-300, T/YH*180-300, T/YZ*150-300, W/D/G**150-300 |
Introduction
Read this manual thoroughly before operating or servicing this unit. Click the e-library image below to download a PDF of the 0 to 100% Low Leak Economizer Installation Instructions.
Configuration:
From the Home screen > Settings > View Configuration > Edit > Proceed
- Outside Air = 0 - 100% Economizer
- Remote Minimum Position = Not Installed
- Space Pressure Control = Not Installed, Relief Fan Only (Power Exhaust Fan)
- Economizer Type = Dry Bulb, Reference Enthalpy, Differential Dry Bulb, Comparative Enthalpy
Power Exhaust (Space Pressure Control):
For more information about Power Exhaust click the link below:
Possible Alarms:
- Excessive Outdoor Air
- Outdoor Air Damper Not Modulating
- Unit Economizing When It Should Be
- Unit Not Economizing When It Should
Download:
- Click the e-library symbol for the latest version of the 0 to 100% Economizer Installation Instructions
