Summary:
This process outlines how to load a controller configuration onto a UC or Symbio controller using Tracer TU.
Resolution:

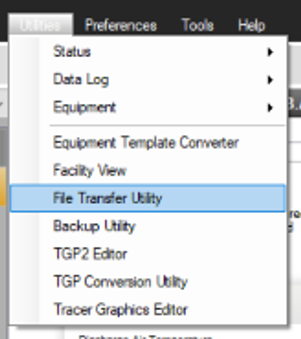

1. From the Utilities dropdown, select "File Transfer Utility."

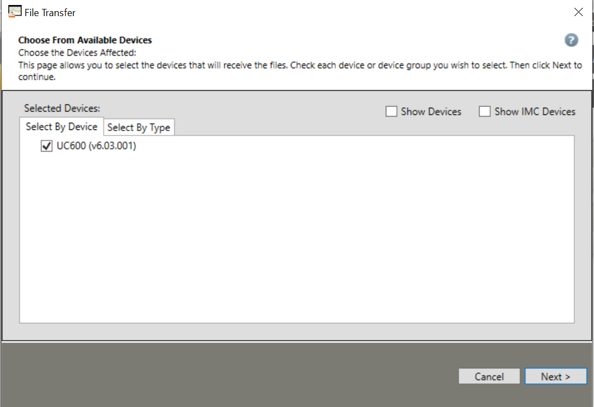

2. Make sure the box is checked next to the controller’s name and click next.

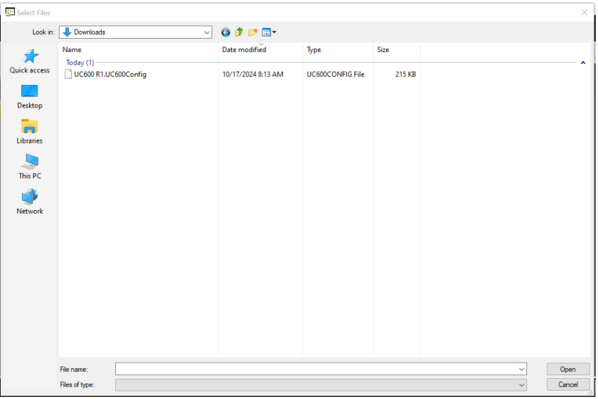

3. Browse to and select the Config file and click Open.

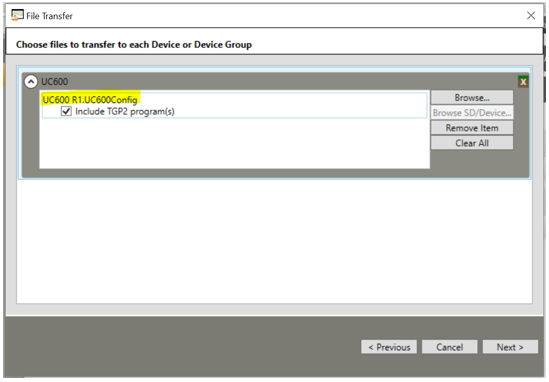

4. Verify the correct file is in the window, click on Next, then click on Start.

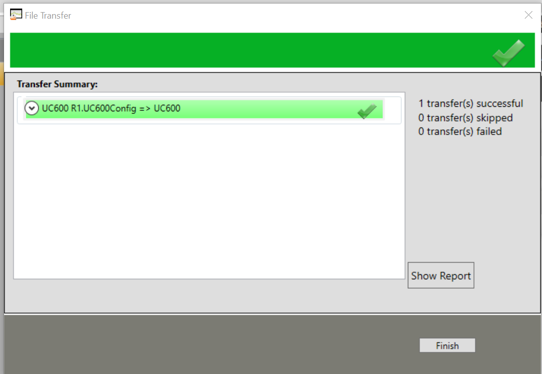

5. When the update is completed, select Finish.
