Variable Frequency Drives (VFD) added by Creative Solutions will have unique programming to meet application requirements.
When a VFD is added as part of a modification, drive parameters can be found on the as-built supplied as part of the modification.
The as-built will be located with the standard diagram packet or on the panel door near the standard electric diagrams.

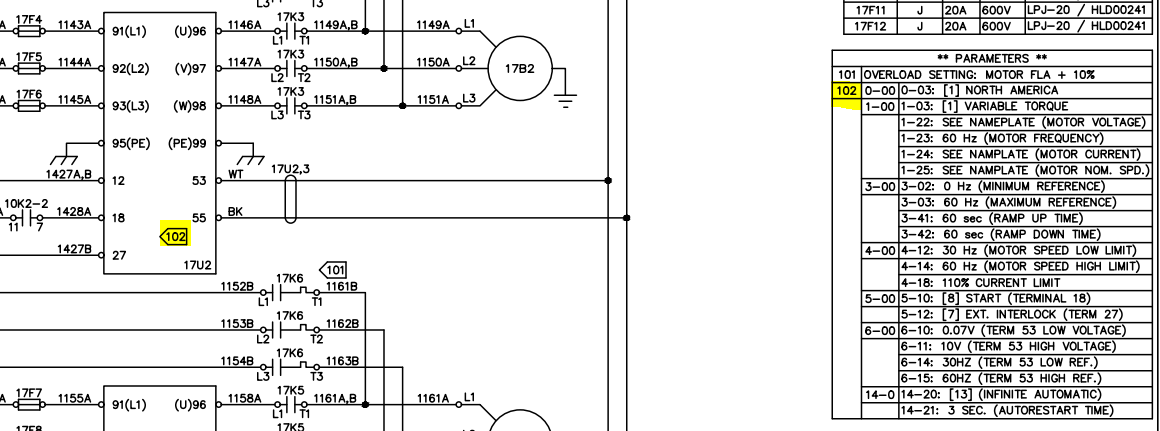

If multiple VFDs are added to a unit, each may have unique programming requirements. Unique drive parameters will be identified with a flag notes (see highlighted example below).
