Summary:
IDEC brand relays are prevalent with Creative Solutions modifications. The relay layout is illustrated on the side of the relay and the base includes embossed terminations. These can be difficult to see, making wiring the devices and troubleshooting difficult.
Below are examples of each relay option used in Creative Solutions Modifications.
See the manufactures part number on the relay installed in your machine and match this with the appropriate layout below for more information on the appropriate terminations.

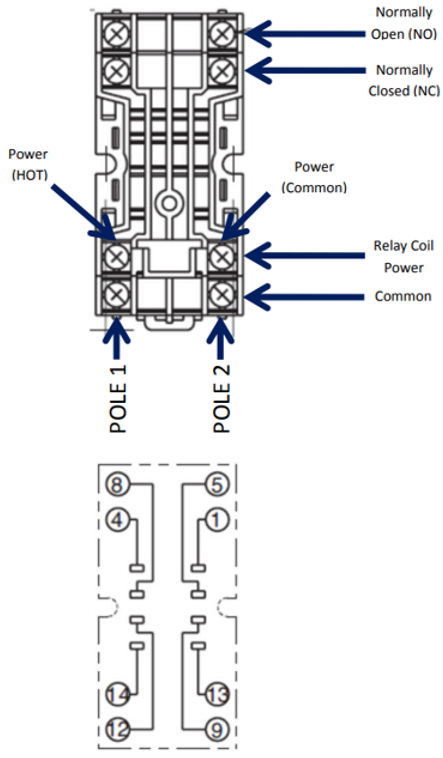

RU4S – 4 Pole Relay
RU2S – 2 Pole Relay

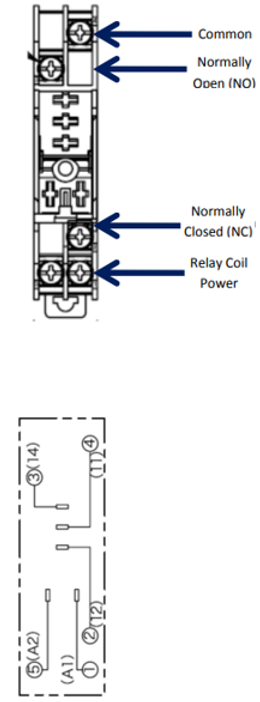

RJ1S – 1 Pole Relay

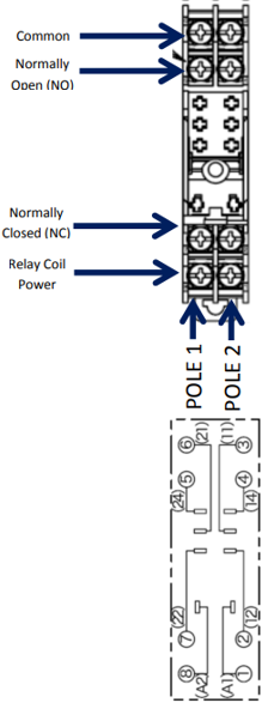

RJ2S – 2 Pole Relay

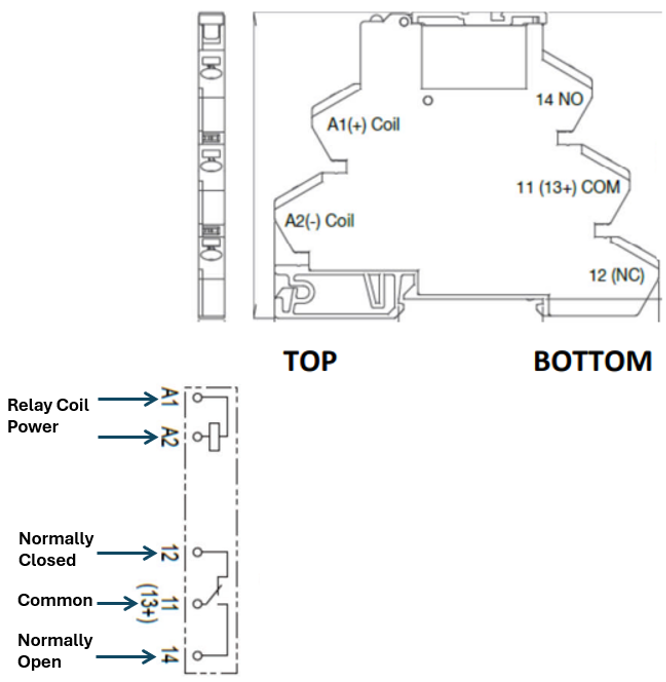

RV8H – 1 Pole Relay
WARNING:
Information in this article is intended for use by individuals possessing adequate backgrounds of electrical and mechanical experience and who comply with all federal, state, and local laws, rules, orders, or regulations related to the installation, service, or repair of a heating or central air conditioning product. Any attempt to install, service, or repair a heating or central air conditioning product may result in personal injury and/or property damage. The manufacturer or seller cannot be responsible for the interpretation of the information contained herein, nor can it assume any liability in connection with its use.
