Symbio 700 Unit Controller LEDS
Summary:
The Symbio 700 Unit Controller is equipped with several LED lights that serve as visual indicators for various functions and statuses. These LED lights play an essential role in helping users monitor and troubleshoot the unit. The Symbio 700 Unit Controller features different LED lights, each with a specific color and purpose. The system LED, for instance, typically emits a green light when the unit is powered on, indicating that it is functioning properly.
LED Description Notes:

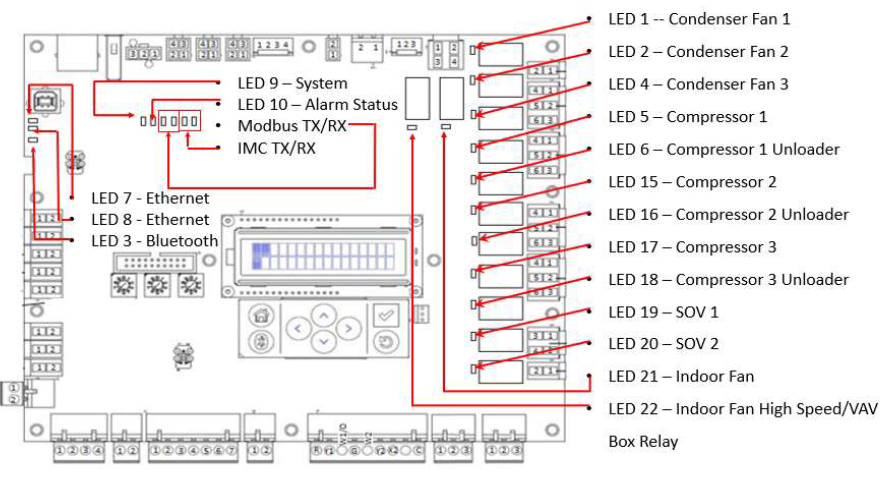

- The LEDs for the internal relays along the right-hand side of the Symbio 700 board illuminate
a solid green color when the relay is energized. The description in the illustration has which
output is active. - LED 3 – Bluetooth is on when Bluetooth is connected and flashes during pairing, otherwise,
it is off. - LED 7 – Ethernet Activity light is for the Ethernet Port. The light will flash green whenever
there is network traffic. - LED 8 – Ethernet Link light is also for the Ethernet Port. The light will be solid yellow
whenever the Symbio 700 board is connected to a router or network switch. - LED 9 – System light is normally a solid light when power is applied and after the boot
sequence. - LED 10 – Alarm Status is normally off unless there is an active alarm then it will flash a red
light. - MODBUS TX/RX – Normally off unless the AHU is configured for SZVAV or multispeed.
When normally communicating with the VFD, both lights will pulse at the same time with
about a second in between flashes and a couple of quick pulses every now and then. - IMC TX/RX – Normally has very fast pulsing almost making the lights look just dim.
