- This is Usually seen when the Factory jumper is not installed back at CN31 On the Inverter board after it has been replaced.
- If the unit has two compressors it will connect to CN31 On the top Inverter #2 .
- If the unit only is a single compressor it will connect to the single inverter module at CN31.
- E205-U200 is the Main unit.
- E205-U201 is the first sub unit.
- E205-U202 is the second sub unit.
- These are determined by the Dip switches for Gen 1 and programmed in Gen 2 units.

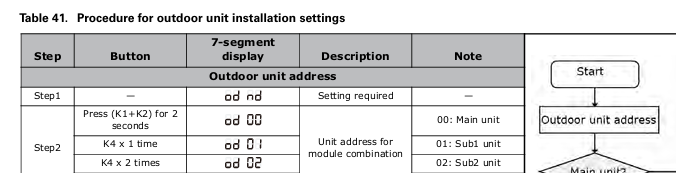

- Gen 2

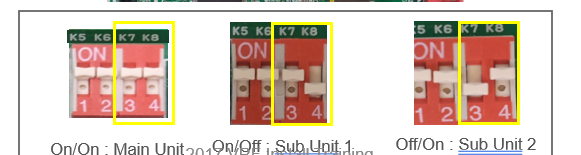

- Gen 1
-
- Trane Part number if lost or needs to be replaced .
WIR07708 5 1 WIRE; WIRE; ASSY, CONNECTOR-INVERTER SHORT, DVM I
E-205
