Refrigerant Leak Sensor System:
- Sensor Purpose:
- UL requirement for units using A2L refrigerant
- Detect the leakage of the refrigerant
- Installed in Air Handler unit (for split units)
- Who manufactures the R-454B Leak Detection Sensor used:
- Danfoss
- The sensors self-calibrate
- The sensor auto resets
- Sensors are calibrated to trip at 15% Lower Flammable Limit (LFL)
- The factory-provided sensor is only set up to detect R-454B
Mitigation Action in the Event of a Leak:
When the system detects a leak, the following mitigation actions will be initiated until the refrigerant has not been detected for at least 5 minutes.
- Disable Compressor Operation
- Disable Electric Heat
- Run the indoor supply fan to deliver a required minimum amount of circulation airflow
- Provide an output to energize Mechanical Room Ventilation (only binary output provision)
If the leak detection sensor has a fault, at the end of its life, or disconnected, the unit will initiate mitigation actions. Disconnecting the sensor may verify mitigation actions.

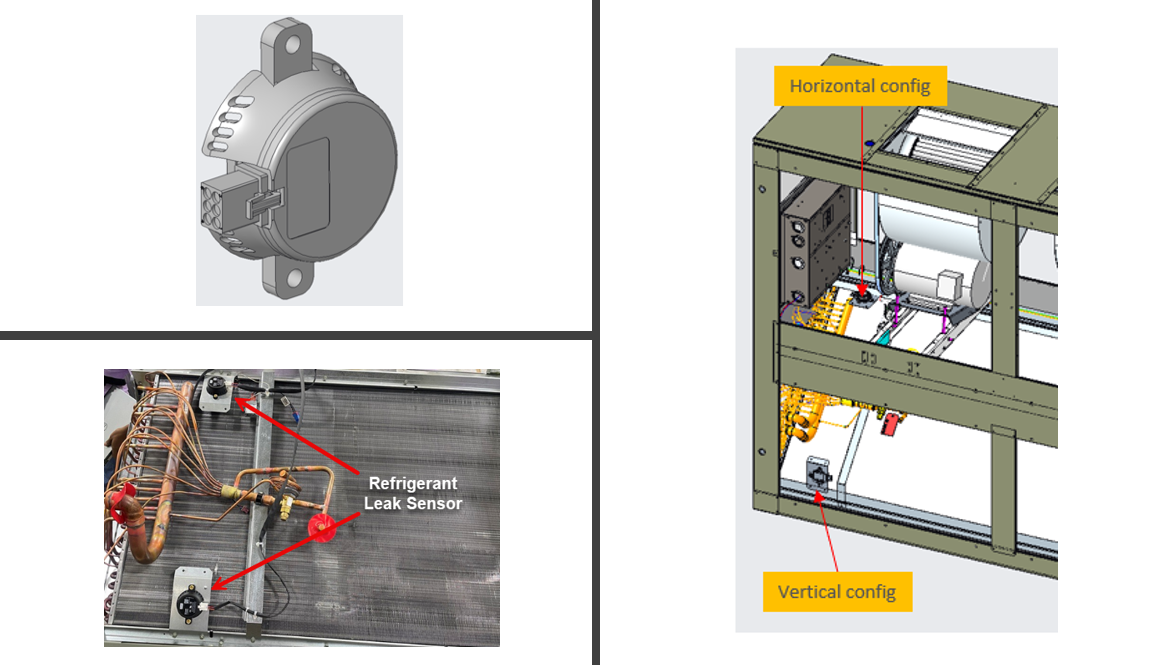

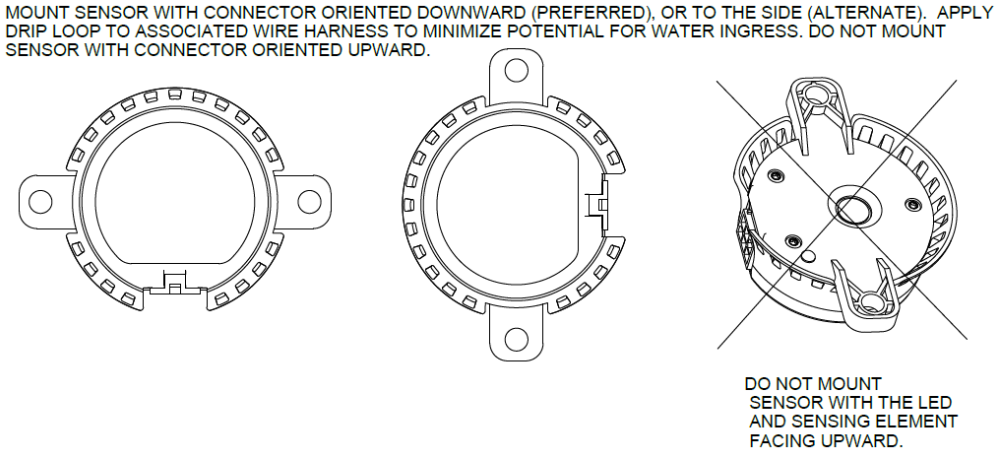

Location:

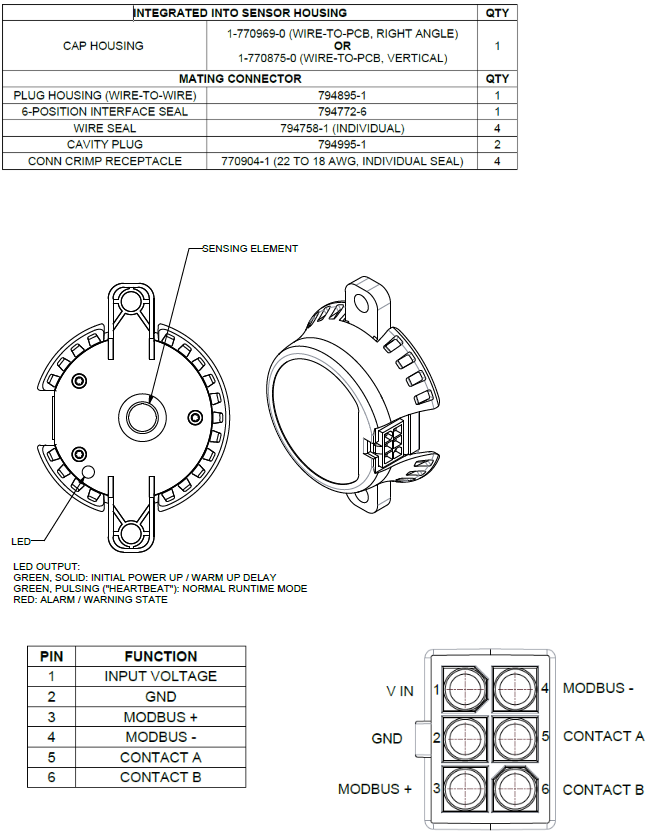

Connection Type:
- The leak detection sensor is a 6-pin plug. 2-pin 24Vac Power, 2-pin Modbus (not currently used), and a 2-pin contact.

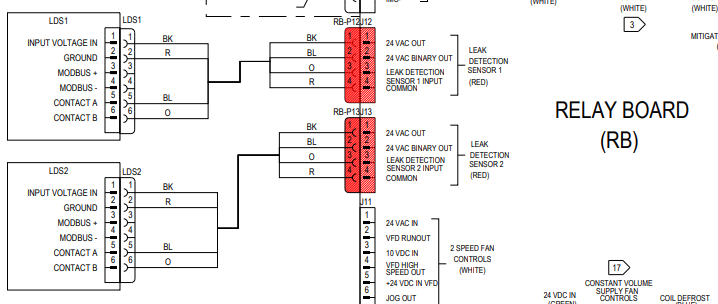

Factory Installed wiring:
- 24Vac power
Replacement:

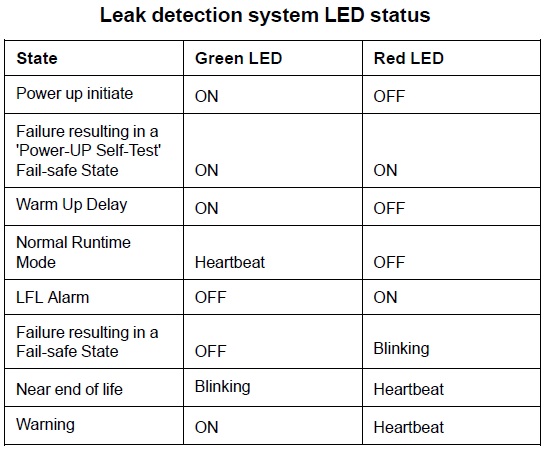

Alarm:
- Diagnostic: Refrigerant Concentration Sensor A (With Symbio Condenser)
