*LCU DCV Quick Set-up for CV and MZVAV Light Commercial Units
This set-up guide is not for Multi-Speed, SZVAV, 17 SEER, or Precedent (WHC) High-Efficiency Heat Pumps (use for CV and MZVAV units only)
- Turn DCV MIN POS potentiometer full counterclockwise.
- Turn the DESIGN MIN POS potentiometer fully clockwise.
- Turn the LL pot to the 9 o’clock position.
- Turn the UL pot to the 12 o’clock position.
- Start the fan and verify between 1 to 2 volts on the RTEM DCV terminals (low CO2)
- Set the DCV Min Pot (0 - 40% damper position) this is your minimum position with low CO2.
- Simulate high CO2 by one of the following methods:
- Use a 9-volt battery.
- Have someone breathe into the CO2 sensor.
- The damper should start to move.
When using a Trane BAYCO2K00**, be sure to wire the CO2 sensor for 0-10 VDC output as shown below, then you don’t have to worry about the Out2 Jumper position.
With these settings:
When the CO2 level gets to approximately 600 PPM the damper should start opening.
When the CO2 level gets to approximately 1550 PPM the damper be at 50% (full open for DCV)
LL, UL, DCV MIN and DESIGN MIN can be readjusted later for local codes.
Notes:
DCV MIN POS sets your minimum position.
DESIGN MIN POS sets the maximum the CO2 sensor will drive the damper to.
LL (adjustable from 300 - 1900) is the CO2 level where you want the damper to start to open.
Approximate position values - 9 o'clock is 600 ppm, 12 o'clock is 1150 ppm, 3 o'clock is 1850 ppm
UL (adjustable from 500 - 2000) is the CO2 level where the damper would be max open.
Approximate position values - 9 o'clock is 1200 ppm, 12 o'clock is 1550 ppm, 3 o'clock is 1950 ppm

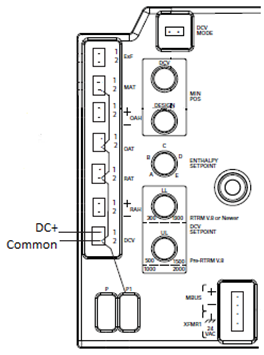

The image below shows the CO2 connection to the RTEM (economizer module)

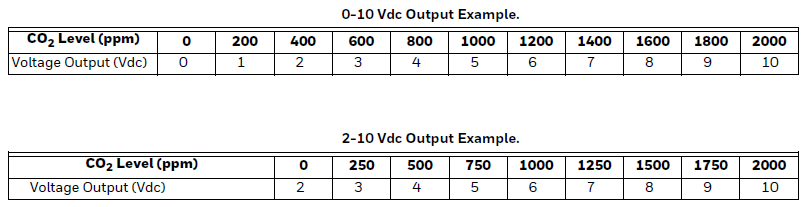

CO2 levels and associated voltages
.
