Indoor Options Module Communication Troubleshooting
Summary:
Options Board com voltage is 4.5 to 3.25 VDC, pulsing 30 times a minute.

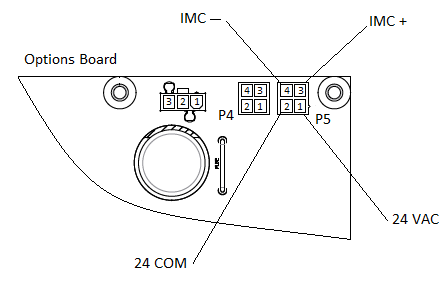

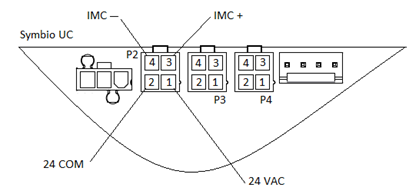

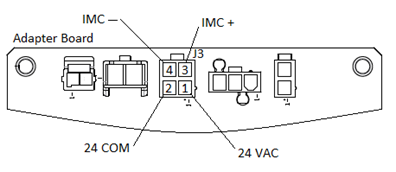

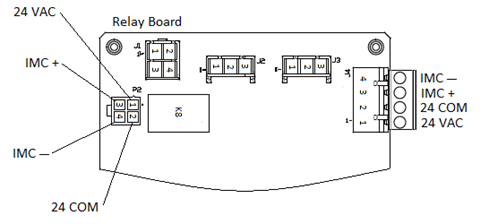

Measuring at Options Board or downstream of the problem:
IMC - open – Options Board LED 5 off, LED 6 off.
(IMC + to IMC -) 4.2 VDC to 3.6 VDC.
(IMC + to Ground) 4.7 VDC to 4.3 VDC.
(IMC – to Ground) .49 VDC to .47 VDC.
IMC + open – Options Board LED 5 dim flicker, LED 6 dim flicker.
(IMC + to IMC -) .7 VDC to .3 VDC.
(IMC + to Ground) .97 VDC to 87 VDC.
(IMC – to Ground) .91 VDC to .1 VDC.
Wires Crossed – Options Board LED 5 on steady, LED 6 off.
(IMC + to IMC -) -4.7 VDC to -.3 VDC.
(IMC + to Ground) .75 VDC to .1 VDC.
(IMC – to Ground) 4.7 VDC to 4.2 VDC.
Other LED info – IMC wires shorted together or both open, LED 5 and 6 off.
Jump to Indoor Options Module Pinout / LEDS Article
.
