Indoor Options Module Pinout / LEDS
Summary:

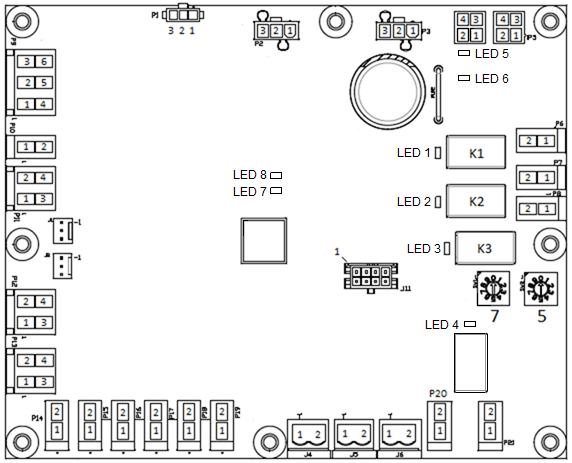

Connector Pinouts and LED Functions for the BAYMODU001
LED Functions
LED 1 – On when Electric Heat Stage 1 output is energized (green)
LED 2 – On when Electric Heat Stage 2 output is energized (green)
LED 3 – On when Electric Heat Stage 3 output is energized - Not used
LED 4 – Not Used
LED 5 – IMC RX (amber)
LED 6 – IMC TX (green)
LED 7 – Not Used
LED 8 – On when Options Module is powered up (green)
