Roof Curb
Used With
| Model Number: | Used With: |
| FIACURB404* | Precedent D Cabinet (Digit 39 = D) |
| FIACURB804* | Precedent D Cabinet (Digit 39 = D) |
Installation Instructions
Click the e-library symbol for the latest version of the Roof Curb Installation Instructions.
Clearances
For detailed instructions, please reference the installation manual.

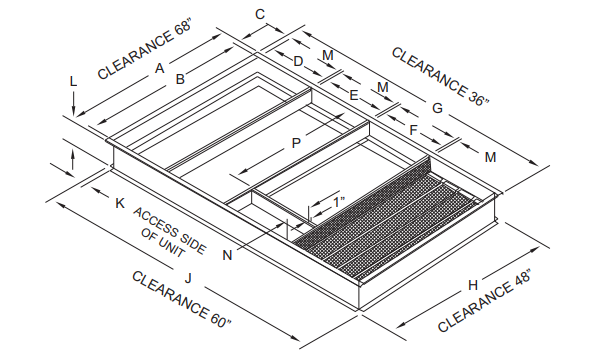

Dimensional data (inches)
For detailed instructions, please reference the installation manual.
(a) FIACURB404* dimension (L) 14 1/16
(b) FIACURB804* dimension (L) 18 1/16
Curbs' weight (net lbs.)
For detailed instructions, please reference the installation manual.
| Curb | Weight |
|---|---|
FIACURB404* |
235 |
FIACURB804* |
265 |

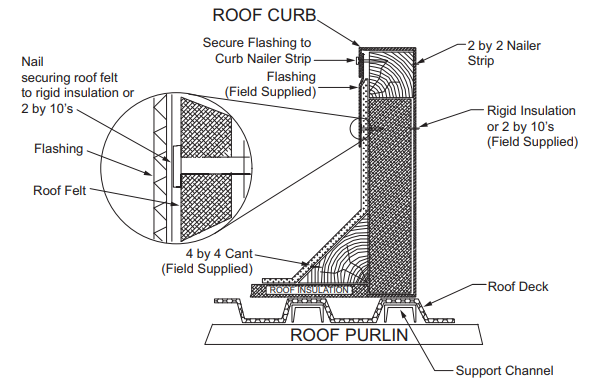

Typical installation on new construction
For detailed instructions, please reference the installation manual.

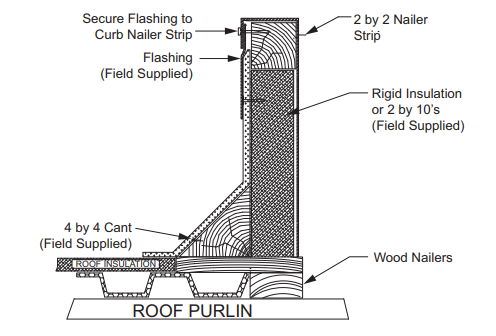

Typical installation on existing construction
For detailed instructions, please reference the installation manual.

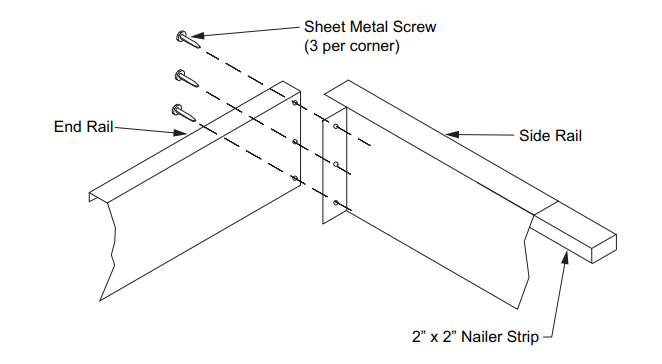

Curb rail assembly A
For detailed instructions, please reference the installation manual.

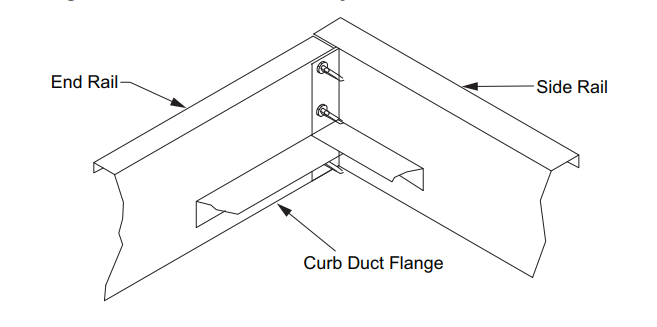

Curb rail assembly B
For detailed instructions, please reference the installation manual.

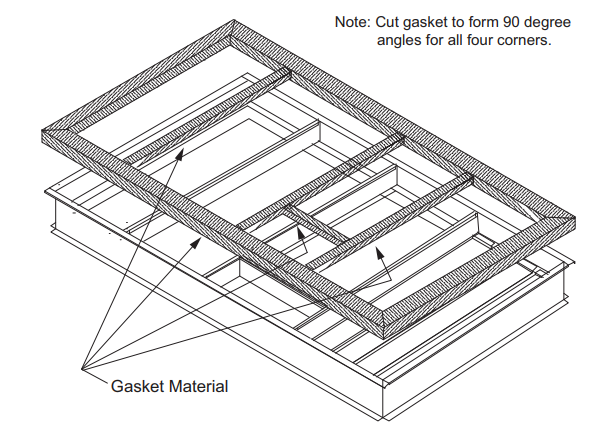

Installing gasket material
For detailed instructions, please reference the installation manual.
Supply and Return Air Ductwork
- When flexible duct is not desired, metal or fiberboard duct may be installed.
- The metal of fiberboard duct must conform to all local building codes.
- The duct must be hung from the curb flanges inside the curb walls.
Important:
Ductwork must be hung from the curb flanges. It must not be installed over the top edges of the curb.
- When the duct is fabricated, it should be large enough to cover the openings for the return and supply sides of the unit, but the flanges must be narrow enough to slide down inside the curb.
Important:
All ductwork attached to the curb, must be in place and secured before the unit is set.
- To ensure proper duct construction and installation, SMACNA recommendations should be closely followed.
Notes:
- All field fabricated panels used must be insulated.
- Fabricated duct flange must rest on inside of curb on flange, as shown, after installation.
