Introduction

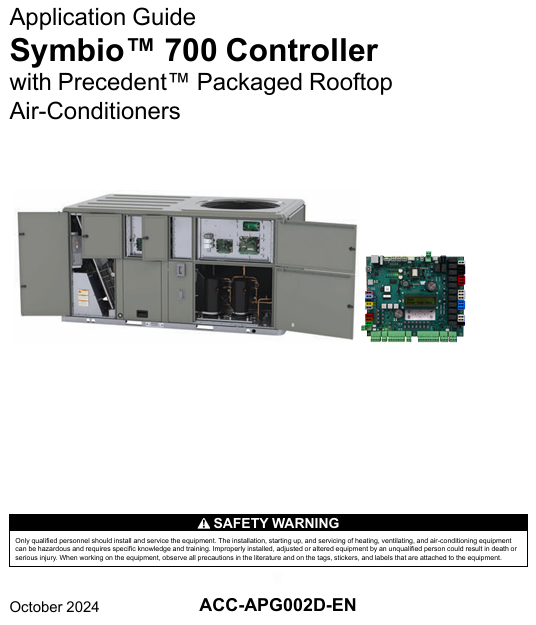

The Symbio™ 700 installed on Precedent™ rooftop units is a factory-installed and programmed controller, providing digital control and protection of the equipment.
The Symbio 700 has two model options:
Standard Controller — provides advanced troubleshooting and access to the Symbio Service and Installation mobile app via a Bluetooth connection. The Standard controller does not support remote communications of any type or custom TGP2 programming abilities. A Standard controller can be converted to an Advanced controller
Advanced Controller — supports Building Automation System interface via BACnet® (ANSI/ASHRAE Standard 135- 2016), Modbus™, Air-Fi®, or LonTalk®. The Advanced Controller also allows optional (field applied) TGP2 programming utilizing optional XM30 and XM32 Expansion Module points. The advanced controller is a purchased feature.
The Symbio 700 offers multiple equipment configuration options regardless of controller model. The Precedent rooftop unit can be configured as the following system types:
Conventional Thermostat Control (T-Stat) - Heating and cooling operation for space comfort managed by conventional thermostat inputs.
Constant Volume Zone Temperature Control (CVZT) - Multi-speed supply fan control to manage space comfort.
Variable Volume Zone Temperature Control (VVZT) - The modulating supply fan speed modulates with heating or cooling capacity to maintain space comfort.
Variable Volume Discharge Air (VVDA) - The supply fan modulates air volume to maintain duct static pressure control. Also known as Multi-Zone VAV.
These configurations can be used with standard cooling systems.
This guide provides information about the configuration, control capabilities and troubleshooting of the Precedent system with Symbio 700 controller.
