Issue:
How to modify the blower RPM (IntelliPak 20-130)
Resolution:

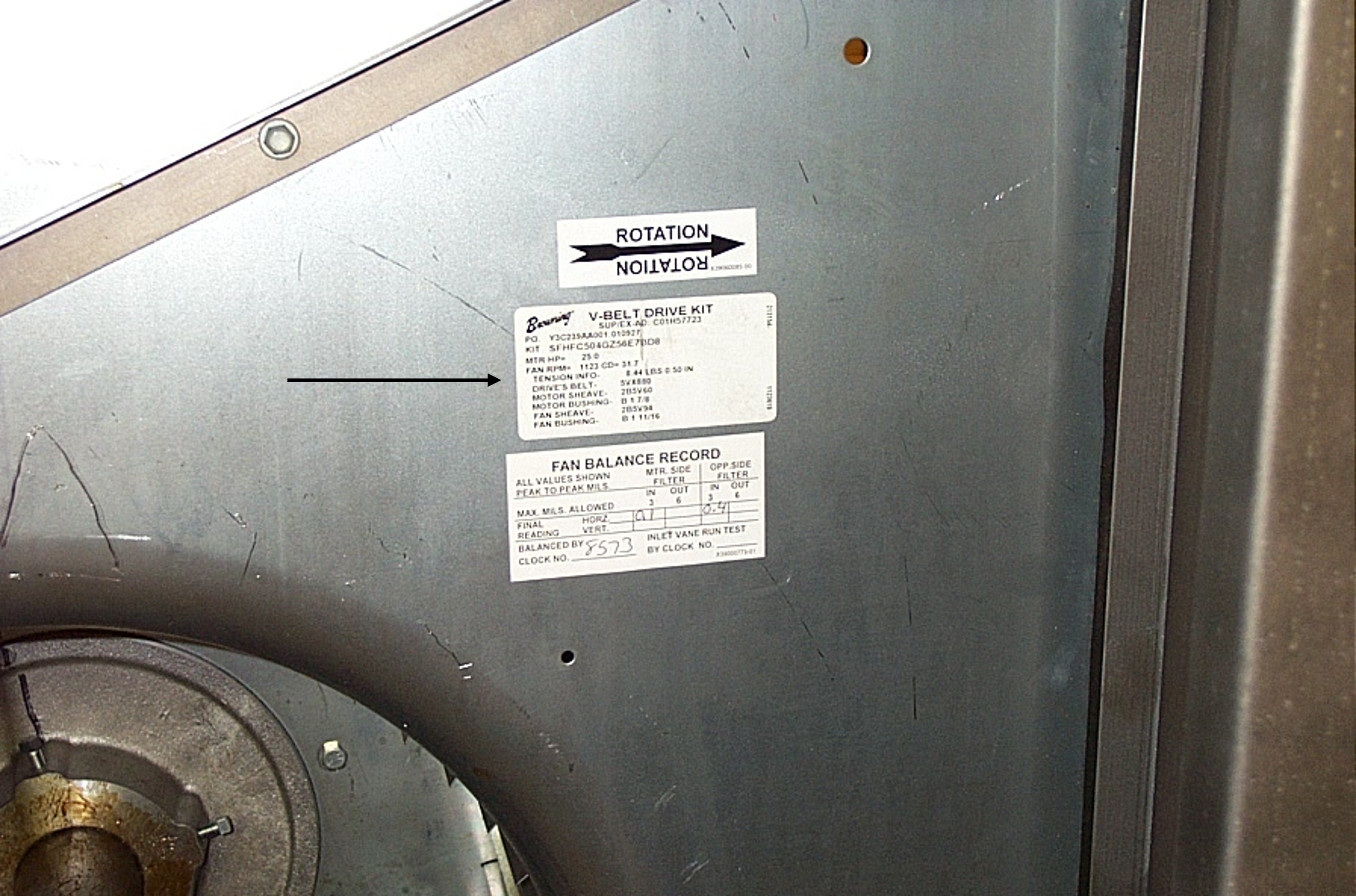

Please obtain the current RPM sheave, belt specifications, motor horsepower, and center distance information from the white tag attached to the supply fan housing. This information is not accessible in the parts system.
Utilize the following formula to determine the desired RPM when the existing RPM results in an overamping motor:
Utilize this formula to ascertain the desired RPM when the actual CFM does not align with the Design CFM:
Please reach out to Browning technical support at applicationengineering.ptsolutions@regalrexnord.com to request assistance with modifying the blower RPM. They will provide the necessary part numbers for sheaves, belts, and bushings based on the revised Fan/Blower RPM selection. Ensure that you include the following information in your email:
Application
Current blower RPM
Desired blower RPM
Current fan sheave part number (to be read from the sheave)
Current motor sheave part number (to be read from the sheave)
Current belt size (to be read from the belt)
WARNING:
Information in this article is intended for use by individuals possessing adequate backgrounds of electrical and mechanical experience and who comply with all federal, state, and local laws, rules, orders, or regulations related to the installation, service, or repair of a heating or central air conditioning product. Any attempt to install, service, or repair a heating or central air conditioning product may result in personal injury and/or property damage. The manufacturer or seller cannot be responsible for the interpretation of the information contained herein, nor can it assume any liability in connection with its use.
