Overview:
Emergency Stop

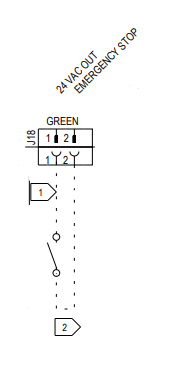

To wire a Smoke Detector or other shutdown device to the Symbio unit use the J18 terminals on the Symbio 700 UC.
The contacts are default normally open (closure between J18-1 and 2 will shut the unit down)
You do not have to enable Emergency Stop in the Symbio 700 menu (Emergency Stop is always enabled)
External Auto Stop
Units with a Customer Connection Module (CCM) installed will have an additional input that can be used to Stop the unit but has a lower priority than the Emergency Stop input. In addition to having a Customer Connection Module installed, the feature must also be Enabled in CONFIGURATIONS.
The contacts are default normally open (closure between J3-3 and 4 will shut the unit down)
Customer Connection Polarity

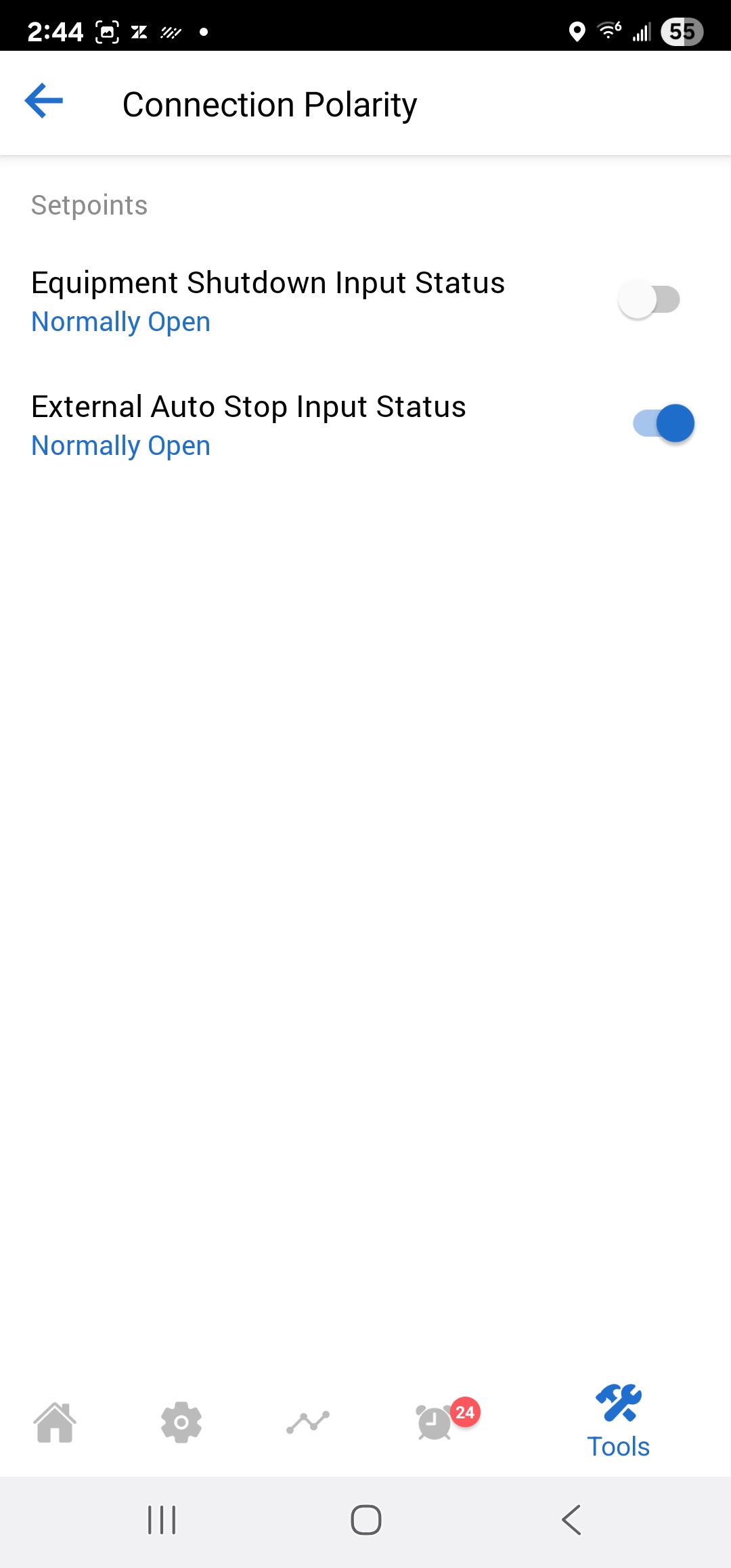

Some applications would prefer that the Emergency Stop and/or External Auto Stop be configured for Normally Closed instead of Normally Open. This can be changed with the Customer Connection Input Polarity feature in the Phone App.

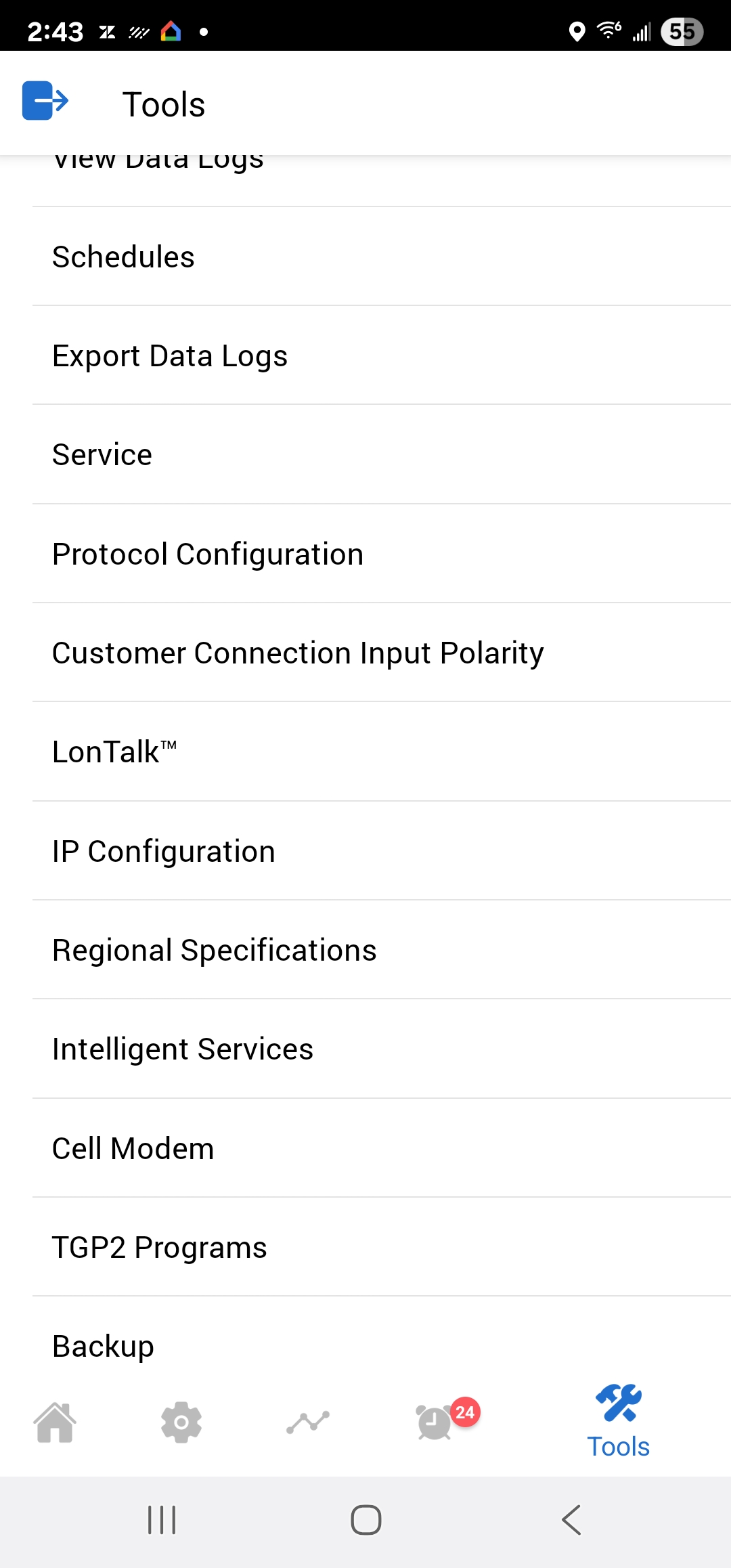

It is located in Tools section of the phone app.
WARNING:
Information in this article is intended for use by individuals possessing adequate backgrounds of electrical and mechanical experience and who comply with all federal, state, and local laws, rules, orders, or regulations related to the installation, service, or repair of a heating or central air conditioning product. Any attempt to install, service, or repair a heating or central air conditioning product may result in personal injury and/or property damage. The manufacturer or seller cannot be responsible for the interpretation of the information contained herein, nor can it assume any liability in connection with its use.
