Overview:
The BAYSENS924 will not work on the Symbio 800 you need a X13791009001 (BAYSENS800).
The BAYSENS800 is NOT Compatible with VAV/VVDA configured systems and units (VVZT only).
(Note: A BAYSENS119 is now obsolete and will not be compatible with ANY Symbio product)
The depictions below are located in the IOM for the BAYSENS800 (BAYSENS800 IOM)

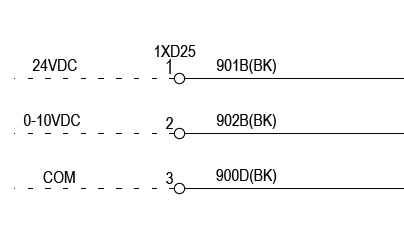

For IPAK 1 and IPAK 2 Symbio units use 1XD25 terminals 1 and 3 (below)
Symbio 800 Protocol Setup:
1.) Verify that the Symbio 800 is setup for Full Arbitration by using the touch screen TD7 display (Settings>Unit Settings>Arbitration Method=FULL SOURCE)

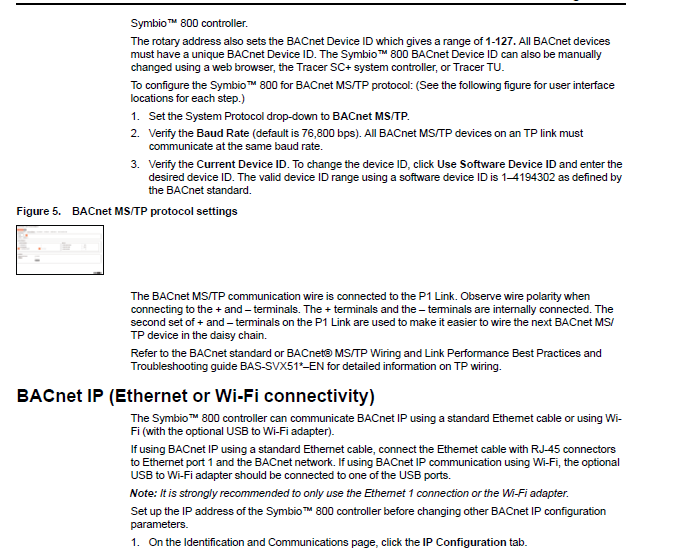

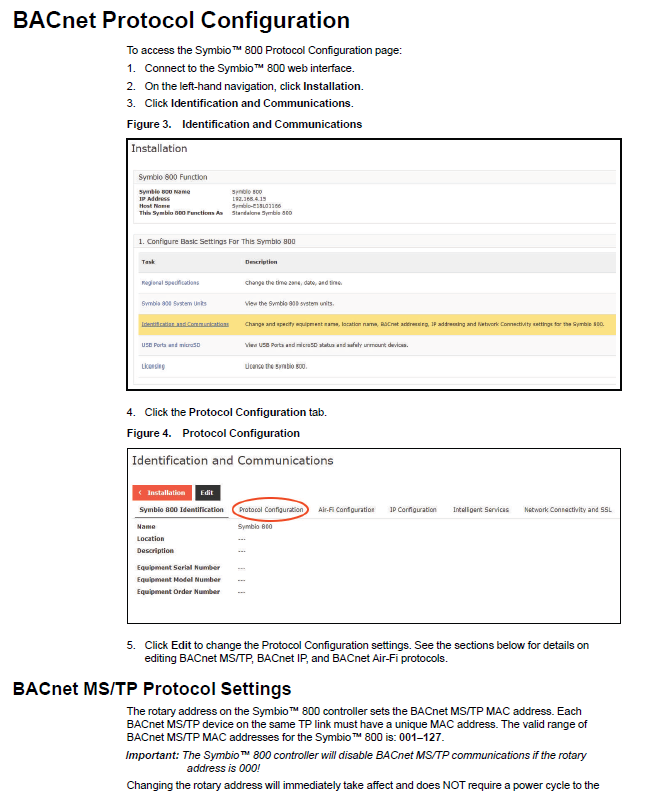

2.) Using a Laptop Connect to Symbio 800 Web interface and set the Communication Protocol to MS/TP BACnet Integration Guide for Symbio 800
