Question: I don't see the isolation springs under the DDP fan assembly. Where are they located?

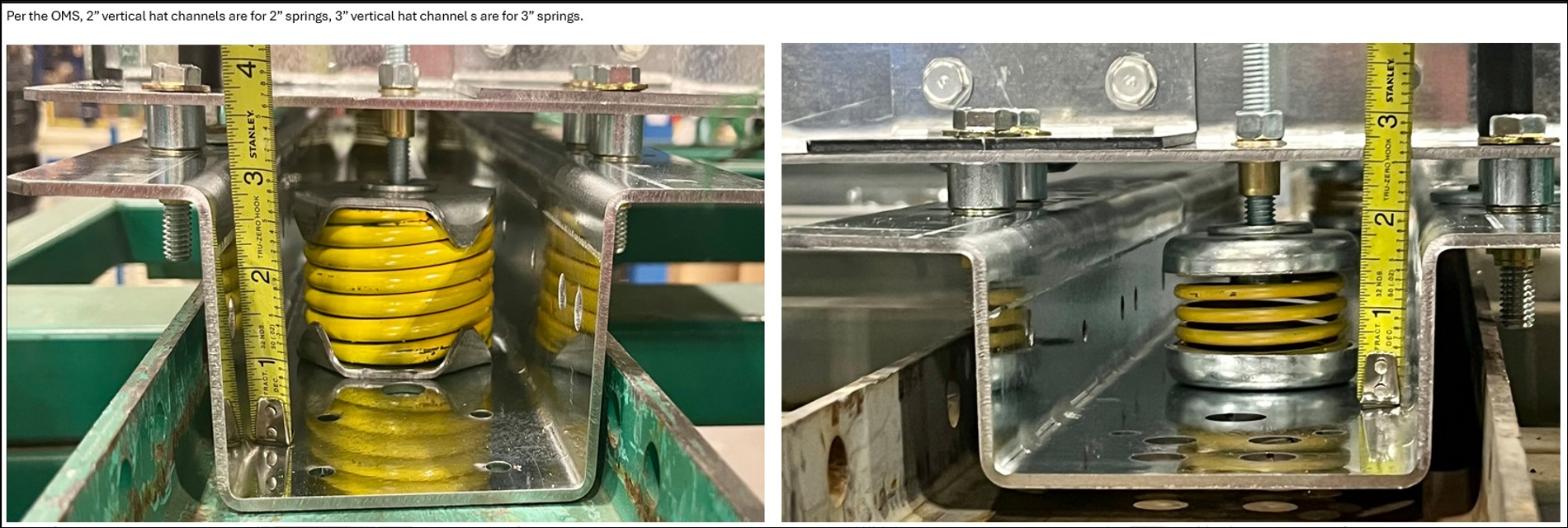

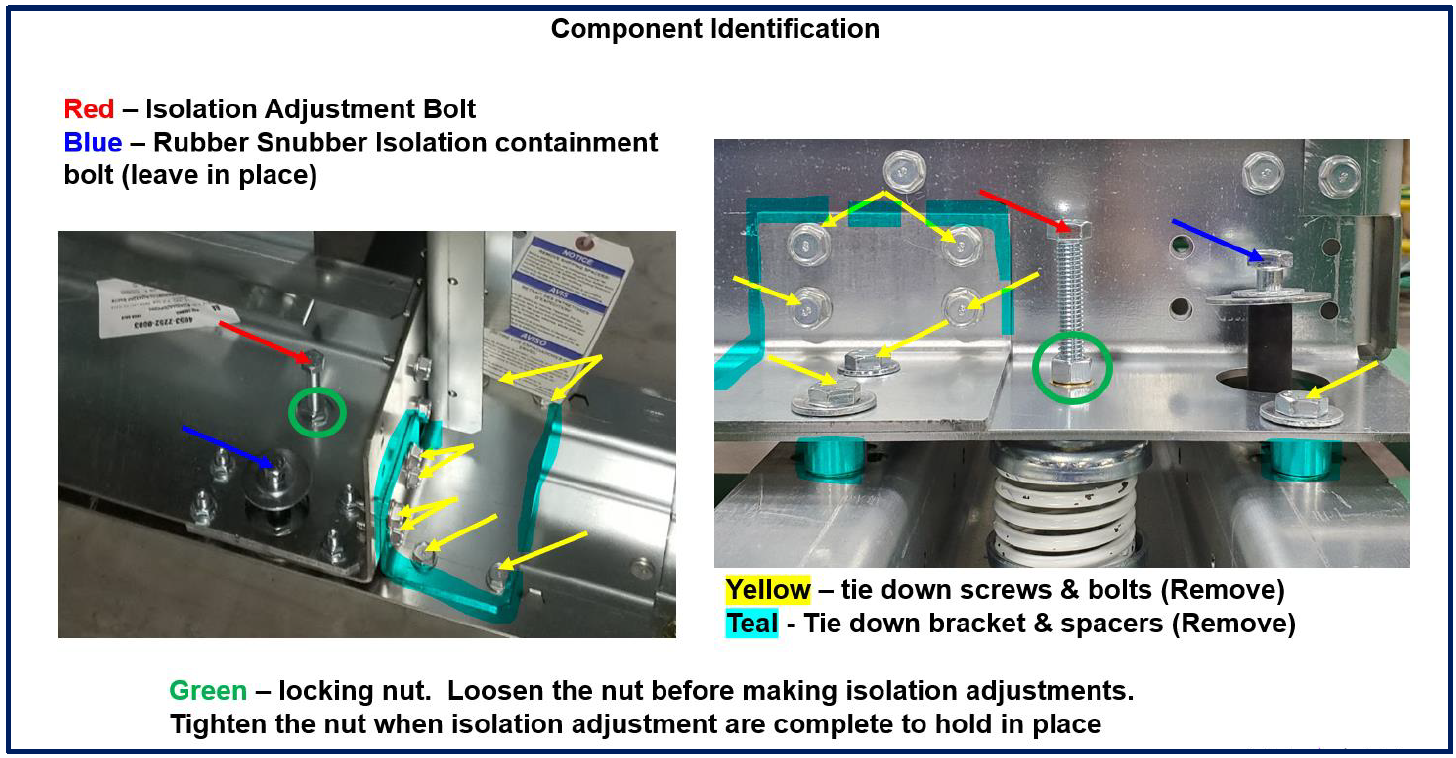

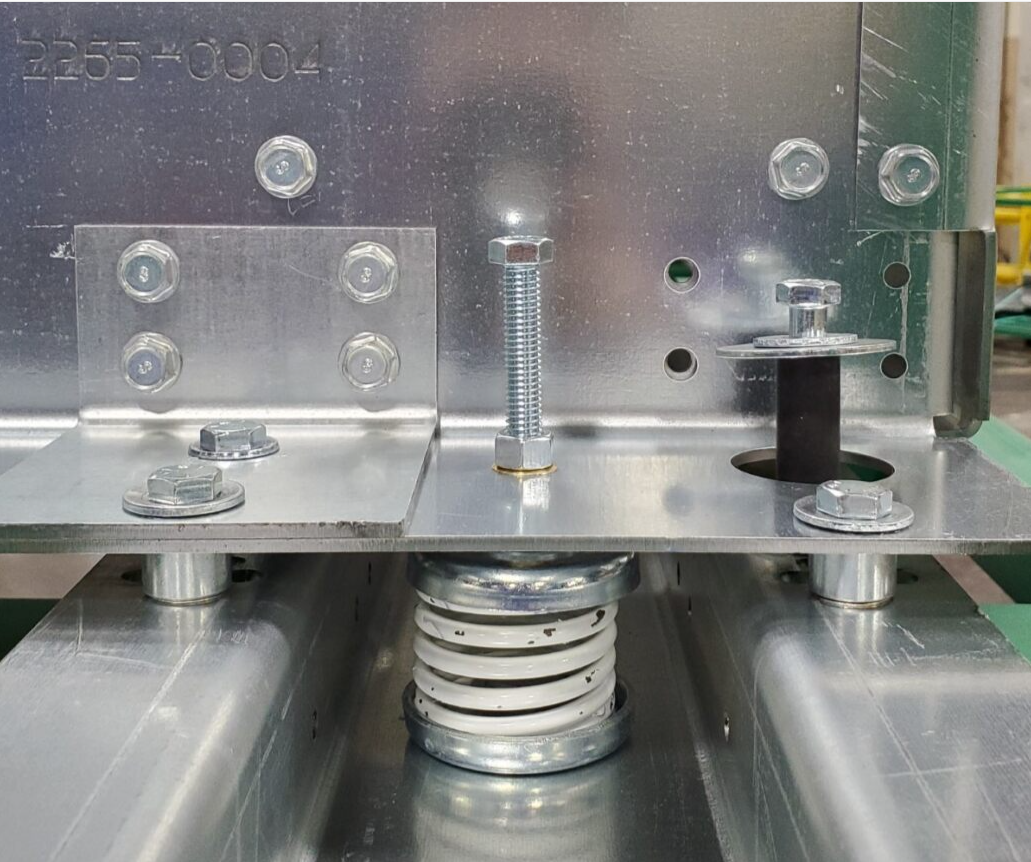

Solution: Spring/Caps are located under the adjustment bolt on all 4 corners of the fan sled.
Load Cell #3 & #4
Load Cell #1 & #2
Question: I don't see the isolation springs under the DDP fan assembly. Where are they located?
Solution: Spring/Caps are located under the adjustment bolt on all 4 corners of the fan sled.
Load Cell #3 & #4
Load Cell #1 & #2
