Electric Heater difference between 2023 ECC and 2018 ECB
Summary:
Do the DOE 2023 ECC Medium Foundation units use the same electric heaters as DOE 2018 EBC Medium Foundation Units? Generation C units do not use the same heaters as Generation B units.
DOE 2018 Electric Heaters:
🛑 Alert: Do NOT order these heaters for DOE 2023 Medium Foundation Generation C units.
| Digit | Description | Part Number |
| 0 | Without electric heater | |
| 10 | 10 KW electric heater | EHK-10CUL (230V) |
| 15 | 15 KW electric heater | EHK-15CUL (230V) |
| 25 | 25 KW electric heater | EHK-25CUL (230V) |
| 32 | 32 KW electric heater | EHK-32CUL (230V) |
| 41 | 41 KW electric heater | EHK-41CUL (230V) |
| 50 | 50 KW electric heater | EHK-50CUL (230V) |
| Heater Part Number | Description |
| EHK-14FUL | 13.9 KW electric heater (460V) |
| EHK-16FUL | 16.5 KW electric heater (460V) |
| EHK-25FUL | 25 KW electric heater (460V) |
| EHK-33FUL | 33 KW electric heater (460V) |
| EHK-41FUL | 41.5 KW electric heater (460V) |
| EHK-50FUL | 50 KW electric heater (460V) |
Heater Changes:
DOE 2023 Electric Heaters:
| Heater Part Number | Description |
| BAYHTMA310A | 10 KW electric heater - 230V |
| BAYHTMA315A | 15 KW electric heater - 230V |
| BAYHTMA325A | 25 KW electric heater - 230V |
| BAYHTMA332A | 32 KW electric heater - 230V |
| BAYHTMA341A | 41 KW electric heater - 230V |
| BAYHTMA350A | 50 KW electric heater - 230V |
| BAYHTMA414A | 13.9 KW electric heater - 460V |
| BAYHTMA416A | 16.5 KW electric heater - 460V |
| BAYHTMA425A | 25 KW electric heater - 460V |
| BAYHTMA433A | 33 KW electric heater - 460V |
| BAYHTMA441A | 41.5 KW electric heater - 460V |
| BAYHTMA450A | 50 KW electric heater - 460V |

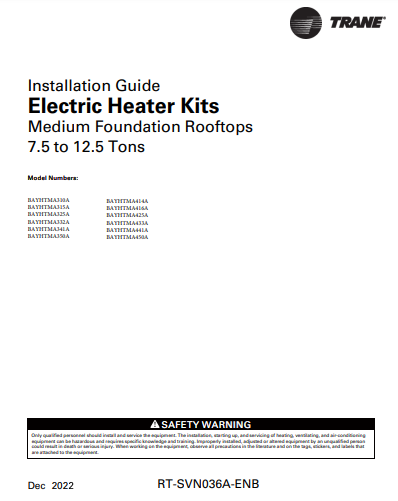

Attached below you can download the DOE 2023 electric heater IOM.
Click the e-library symbol for the latest version
