Conversion Kit
| Model Number: | Used With: |
|---|---|
| FIALPKTM*** | Precedent with modulating gas heat (Digit 10 = B) |
Read this manual thoroughly before operating or servicing this unit. See the download link below.
General Information:
- Please carefully review the installation instructions. These instructions describe converting natural gas package unit models from natural gas to propane (LP) gas. Gas type conversion is a critical procedure, so these instructions must be followed.

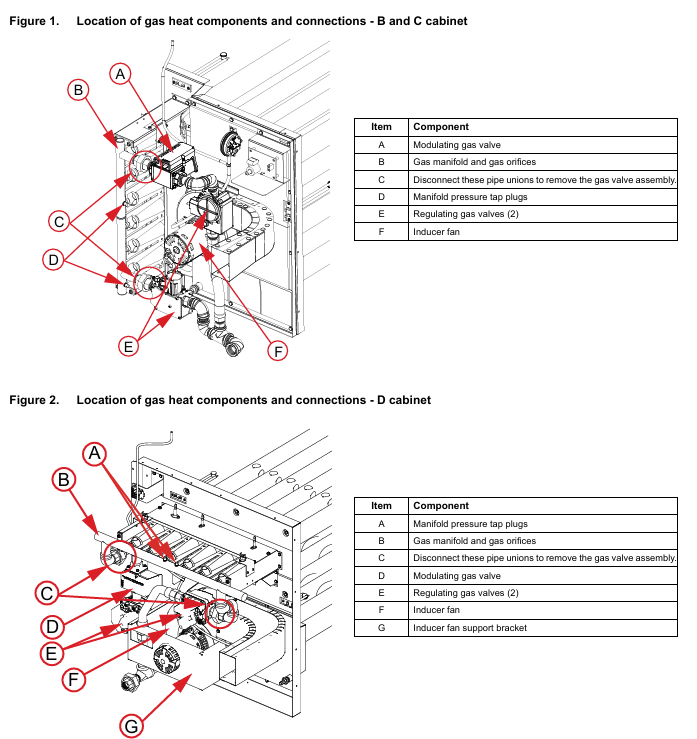

Figure 1. Location of gas heat components and connection - B and C cabinet
Details in Figure 1, above.
| Item | Component |
|---|---|
| A | Modulating gas valve. |
| B | Gas manifold and gas orifices. |
| C | Disconnect these pipe unions to remove the gas valve assembly. |
| D | Manifold pressure tap plugs |
| E | Regulating gas valves (2) |
| F | Inducer fan |
Figure 2. Location of gas heat components and connections - D cabinet
Details in Figure 2, above.
| Item | Component |
|---|---|
| A | Manifold pressure tap plugs |
| B | Gas manifold and gas orifices |
| C | Disconnect these pipe unions to remove the gas valve assembly |
| D | Modulating gas valve |
| E | Regulating gas valves (2) |
| F | Inducer fan |
| G | Inducer Fan support bracket |
Find "LP Conversion Kit Precedent™ Packaged Rooftop Units 6 to 25 Tons" attached below as ACC-SVN269E-EN.pdf.
