- *LCU wiring my power exhaust control circuit
Overview:
Refer to the applicable Power Exhaust Kit Installation Instructions for your particular unit. This literature was shipped with your power exhaust kit. Please contact your local Trane Parts Center if you need to obtain a new copy.
Process:

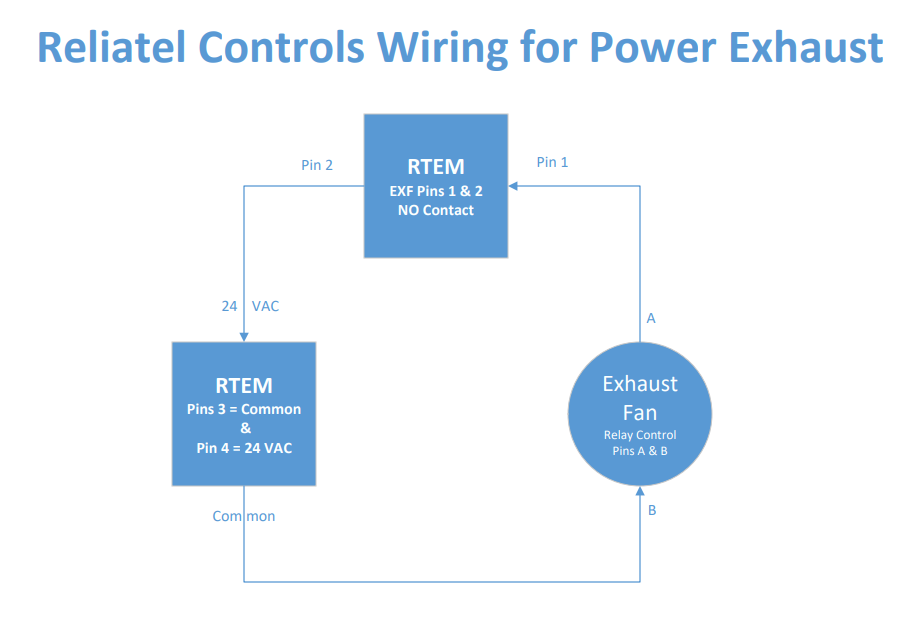

The drawing below is a basic depiction of how the control circuit can be wired.

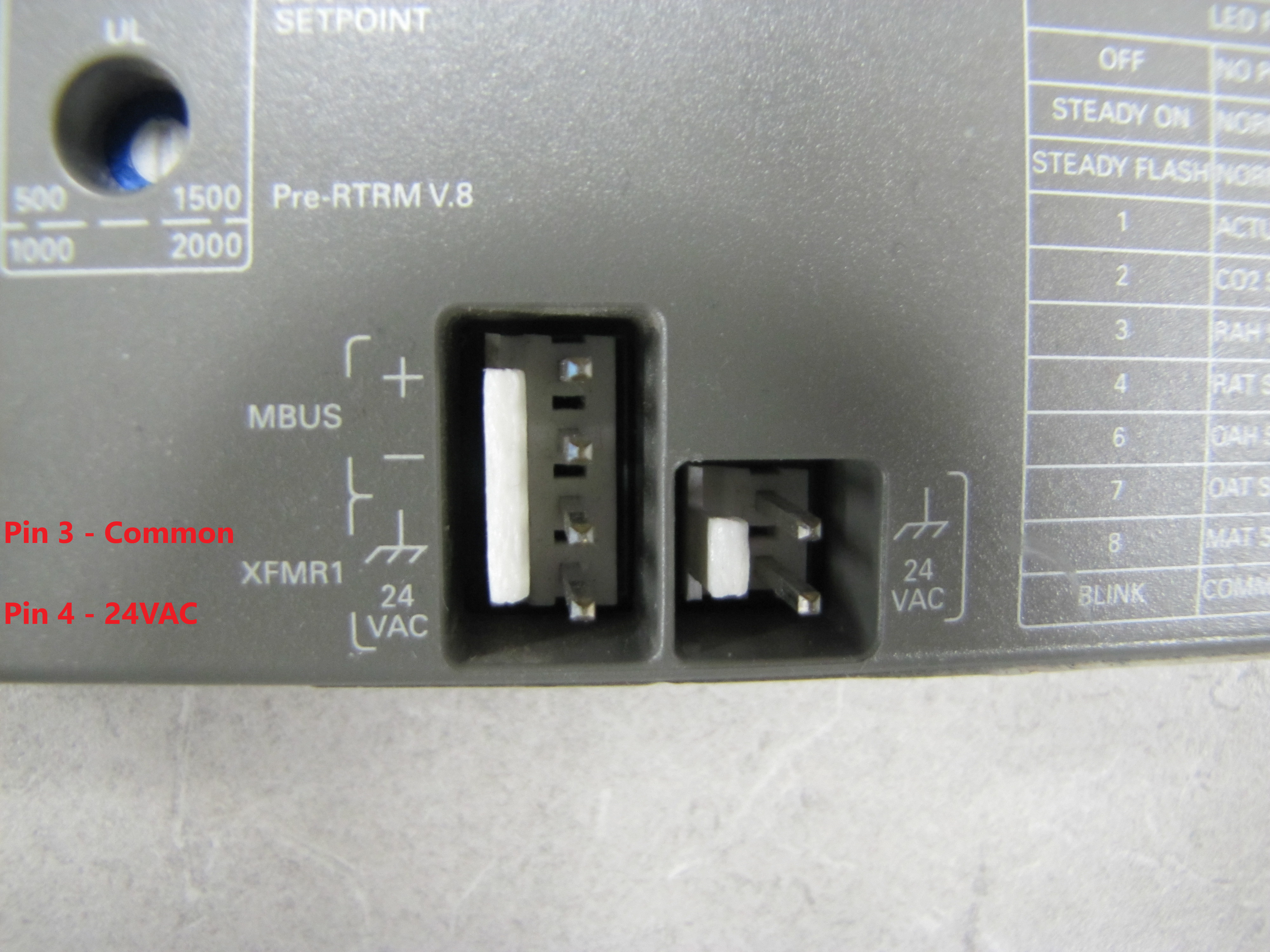

Image 1: 24VAC Transformer Contacts on RTEM

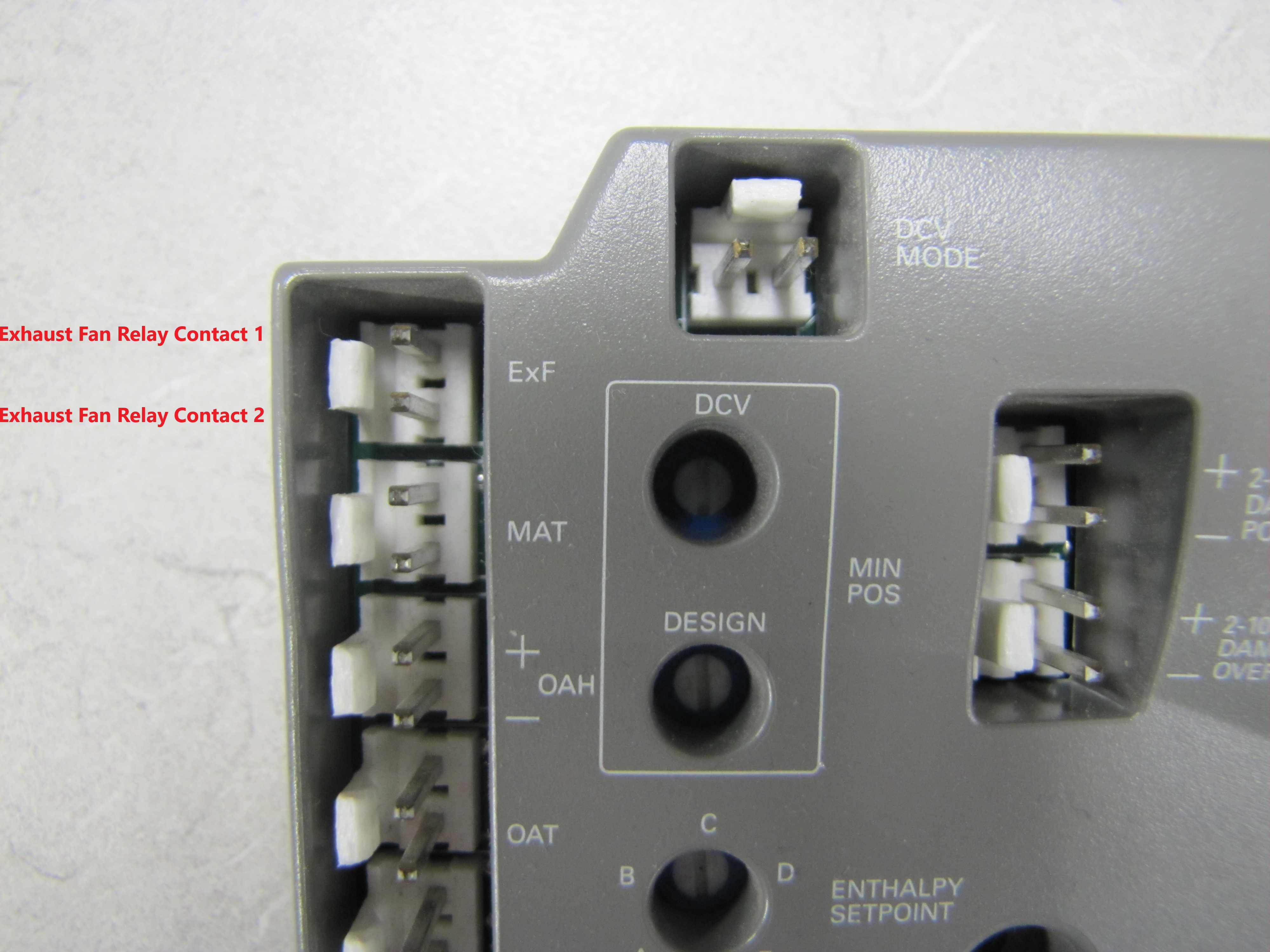

Image 2: Exhaust Fan Relay Contacts on RTEM
Note 1: RTEM = Reliatel Economizer Module
Note 2: EXF = Exhaust Fan Relay Normally Open Contact (2 pins) on the RTEM
