The information below is from the unit Power Wiring diagram, below that is a visual on changing the motor speed on an electromechanical Precedent unit.

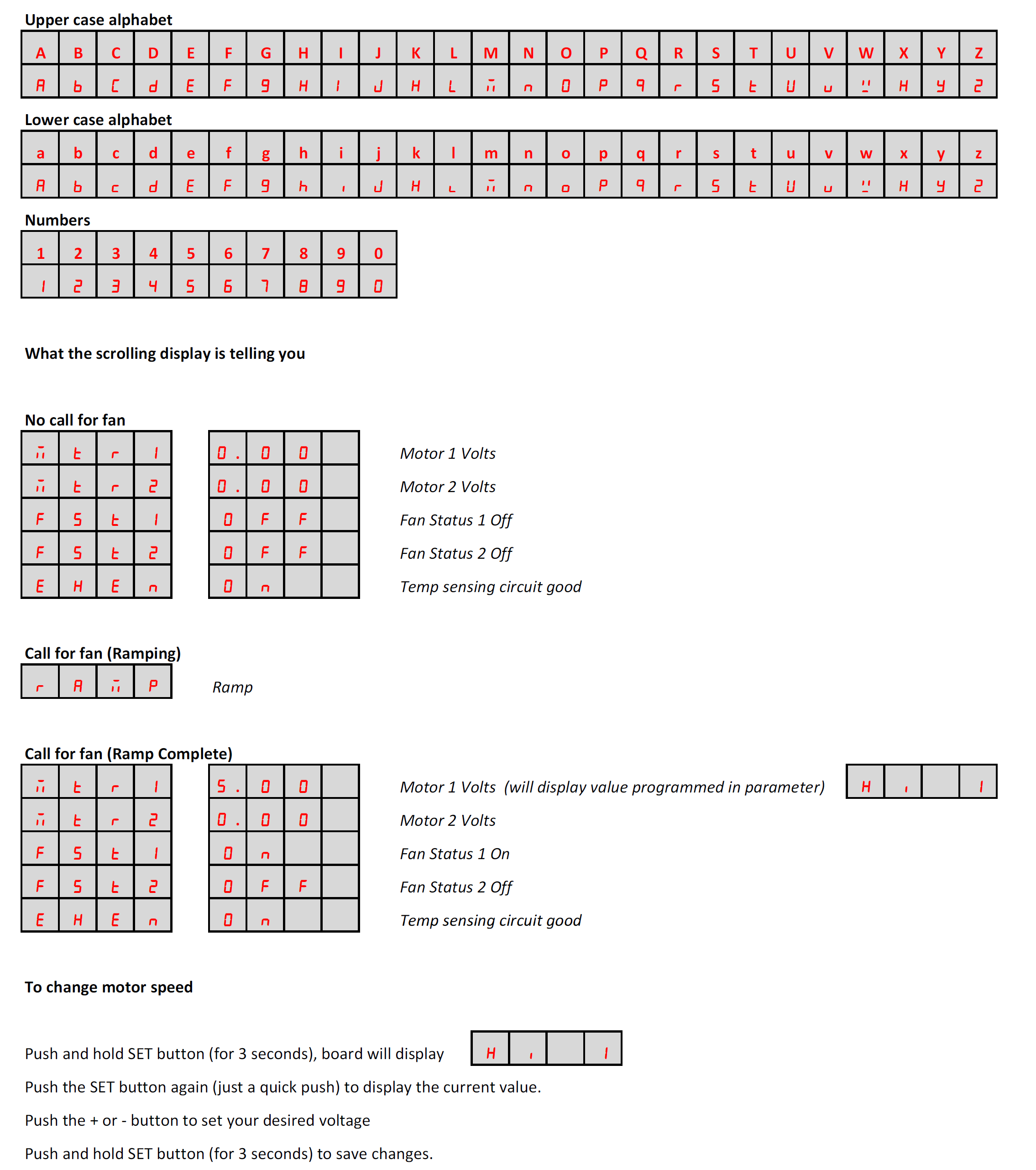

To Increase/Decrease Voltage/RPMs (See IDM PRM Indication Table below):
- Push and hold the Set button for 3 sec. Board will display
Motor 1 parameter Name: HI 1. - Slow push Set again to display the parameter's current value =
7.50 Volts. - Push on + or - button to adjust parameter to desired value =
XXX Volts. - Push and hold Set button for 3 sec to "Save" the value. After save is complete
HI 1will show again. After the voltage
HI 1is successfully changed, the display sequence will be:- MTR 1 → XXX → MTR 2 → 0.00 → FST1 → ON → FST2 → ON/OFF → EhEn → ON/OFF
and the motor will ramp up or down to adjust to the input signal.
| IDM RPM INDICATION | |||||||
|---|---|---|---|---|---|---|---|
| RPM | VOLT | RPM | VOLT | RPM | VOLT | RPM | VOLT |
| N/A | 1.00 | 465 | 2.75 | 976 | 4.50 | 1425 | 6.25 |
| N/A | 1.25 | 544 | 3.00 | 1044 | 4.75 | 1475 | 6.50 |
| N/A | 1.50 | 630 | 3.25 | 1115 | 5.00 | 1533 | 6.75 |
| N/A | 1.75 | 716 | 3.50 | 1203 | 5.25 | 1581 | 7.00 |
| N/A | 2.00 | 775 | 3.75 | 1253 | 5.50 | 1615 | 7.25 |
| 325 | 2.25 | 845 | 4.00 | 1312 | 5.75 | 1615 | 7.50 |
| 402 | 2.50 | 912 | 4.25 | 1368 | 6.00 | ||
