Problem:

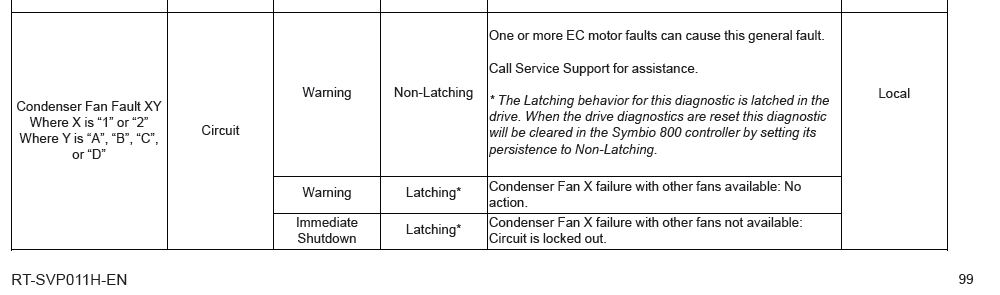

Not all specific codes pertaining to the EBM condenser fans will be generated through the TD7 display. Some of the lesser seen diagnostics will fall into a general category. These other general faults/ diagnostics will have to be read directly from the EBM condenser fan motor.
Solution:
See attached document for LED faults that can be found on the EBM motor. If looking at the motor from the roof, the LEDs will be on the underside of the motor therefore, you will need to view codes with an inspection mirror.
