Factory wiring error.

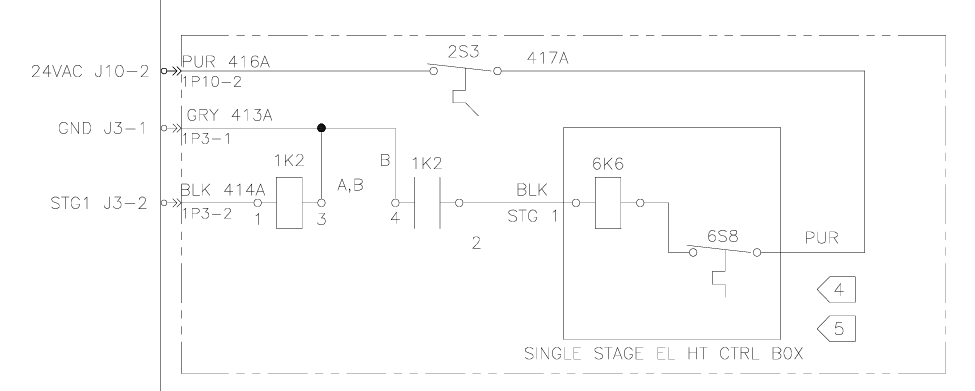

Wire 416A and 417A wired to the 1K2 relay instead of the Electric heat lockout switch

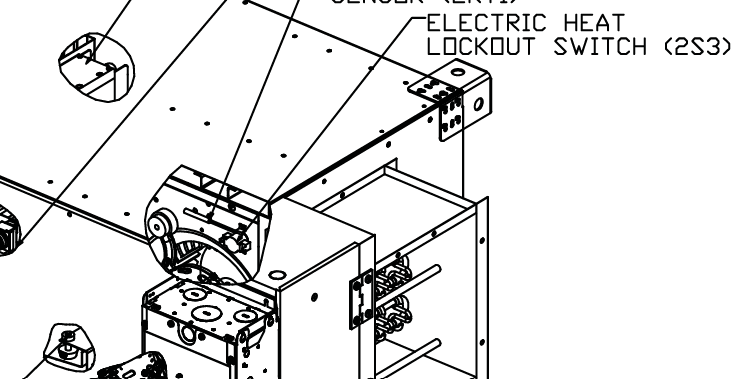

Remove the purple wires and wire to the 2S3 switch as shown
BCXE Electric heat not coming on - CSTI Controls
