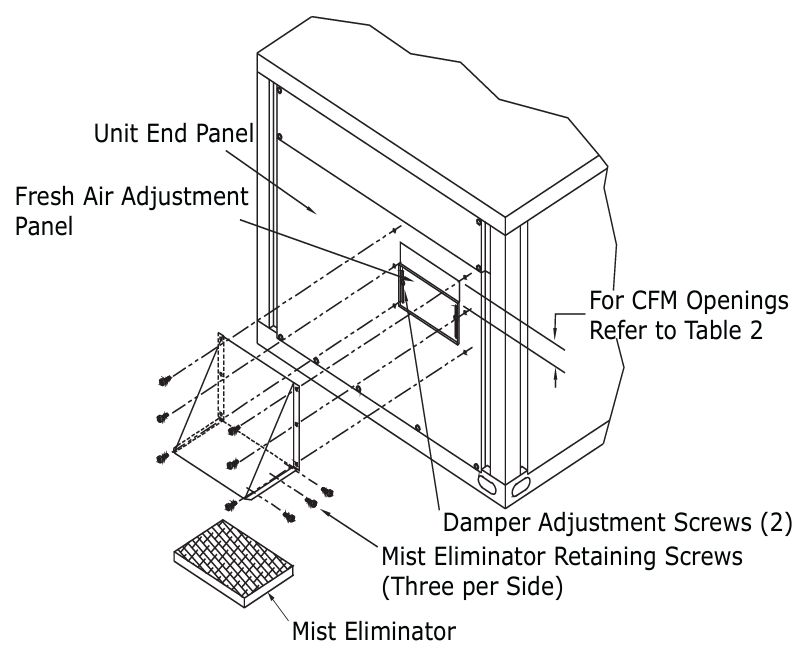

0 to 25% Manual Fresh Air Damper Packaged Rooftop Air Conditioners 12.5 to 25 Tons
Used With
Precedent = FIADMPR003*
Large Foundation = BAYDMPR301*
| Model Number: | Used With: |
| BAYDMPR301* | E/GBC*180-300 and E/GDK*180-300 |
| FIADMPR003* | T/YS*180-300, T/YH*180-300, W/D/G**150-300 |
Installation Instructions Manual
Click the e-library symbol for the latest version of the 0 to 25% Manual Fresh Air Damper.
Maximum Fresh Air CFM
| Unit | Max CFM |
|---|---|
Y/TH*150, W/D/G**150 |
1250 |
Y/TS*180, Y/TH*180, W/D/G**180, E/GBC 180, E/GDK*180-300 |
1500 |
Y/TS*210, Y/TH*210, W/D/G**210, E/GBC 210, E/GDK*180-300 |
1750 |
Y/TS*240, Y/TH*240, W/D/G**240, E/GBC 240, E/GDK*180-300 |
2000 |
Y/TS*300, Y/TH*300, W/D/G**300, E/GBC 300, E/GDK*180-300 |
2500 |

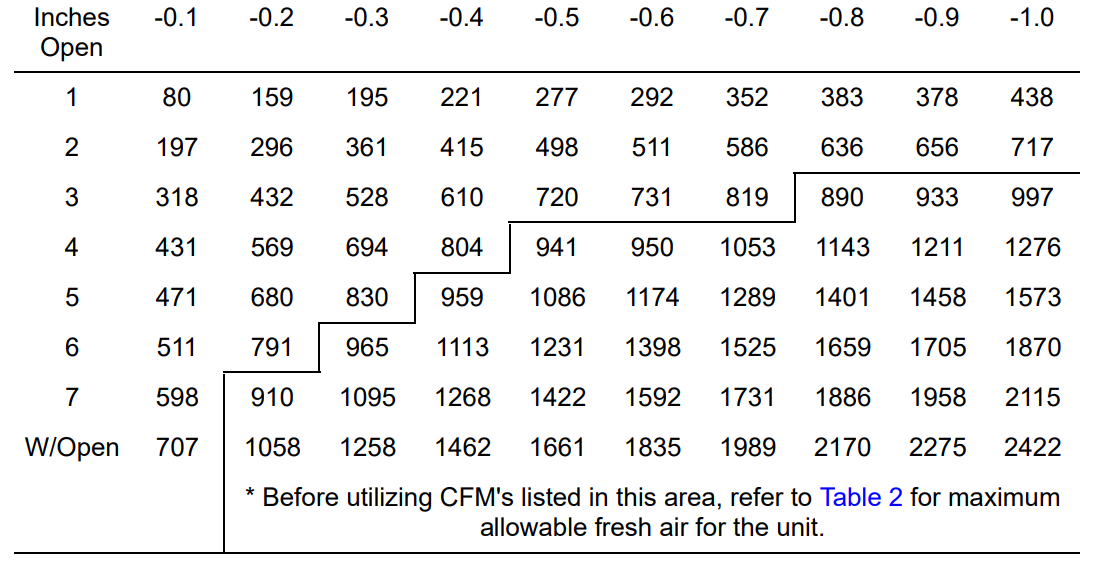

Manual Fresh Air Accessory Airflow
Y/TS*180-300, Y/TH*150-300, W/D/G**150-300, and E/GBC 180-300
Return Static -- Inch W. G.
