Horizontal Duct Conversion Kit for Symbio and Electromechanical Large Foundation Units

Used With

Click the e-library symbol for the latest version of the Horizontal Duct Conversion Kit.

Notes

There are two sheet metal assemblies that can be used in the unit without any additional preparation work:

• Return duct cover – includes fiberglass insulation

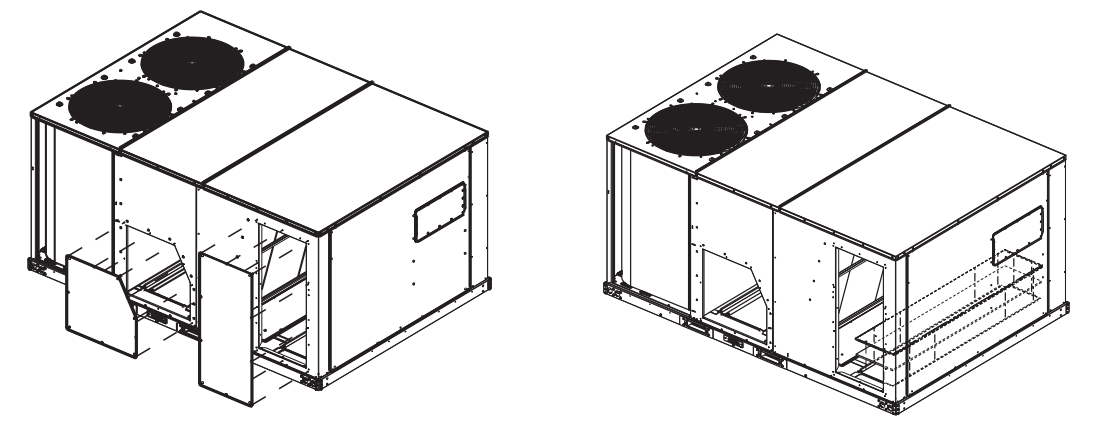

• Supply duct cover – includes insulation, gasket, and bracket attached to the panel. Figure 1 shows both assemblies.

Horizontal Economizer Conversion Kit

• https://support.trane.com/hc/en-us/articles/12543032117133-Symbio-700-Horizontal-Economizer-Conversion-for-Symbio-Precedent-and-Large-Foundation-12-5-25-Ton
