Change Baud Rate using the onboard display
Onboard Display

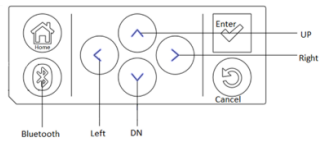

Using the Symbio 700 Onboard menu and keypad
- Press Home.
- Press the Down Arrow and select Utilities.
- Press the Check mark.
- Press the Down Arrow and select Comm Protocol Settings.
- Press the Check mark.
- Press the Down Arrow and select Baud Rate.
- Press the Check mark.
- Change the Baud Rate to the desired rate and press the Check mark.
Note
- You must have an Advanced Symbio 700 controller.
- Digit 21 of the Precedent and Odyssey units indicates the Symbio board license version
- Digit 21 = 1 - Advanced license w/ BACnet
- Digit 21 = 2 - Advanced license w/ Lon
- Digit 21 = 3 - Advanced license w/ AirFI
