Notice: Disregard the arrow direction on the valve body.

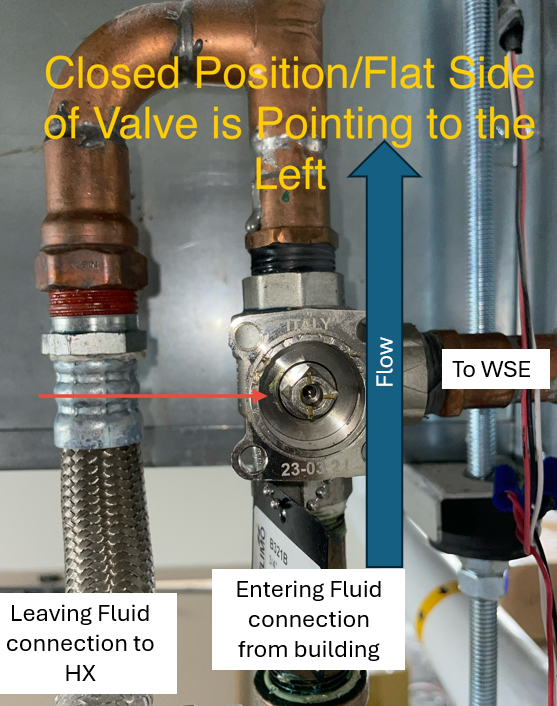

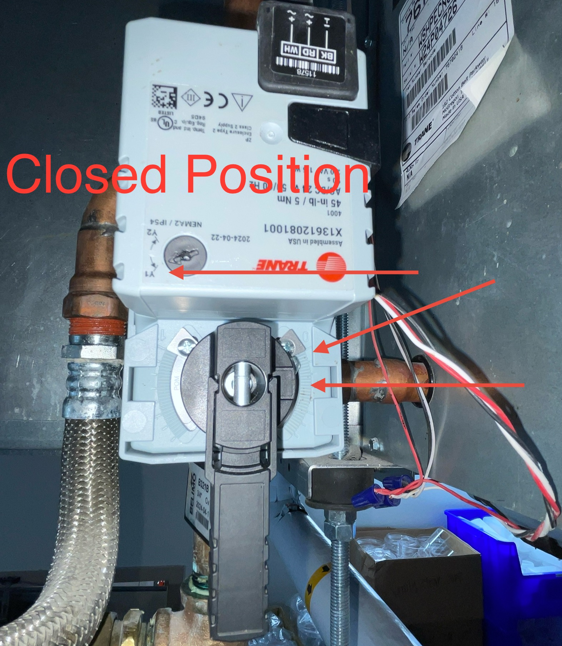

Heat Pump Operation (Default)

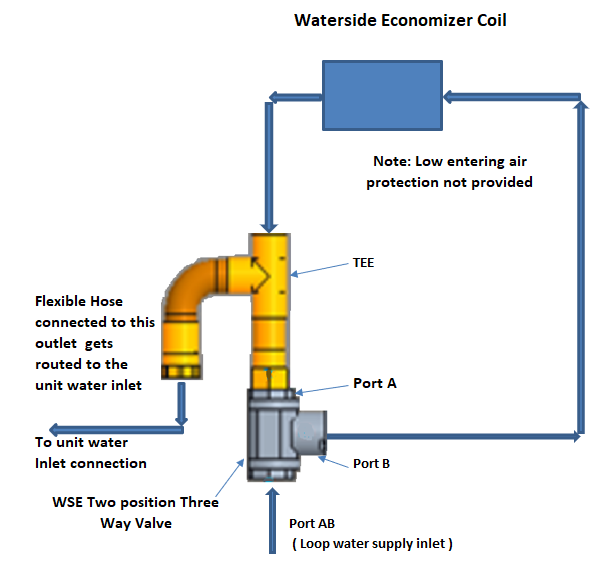

Port AB opens to Port A. Fluid flows through the tee to the water in fitting feeding the unit heat exchanger.

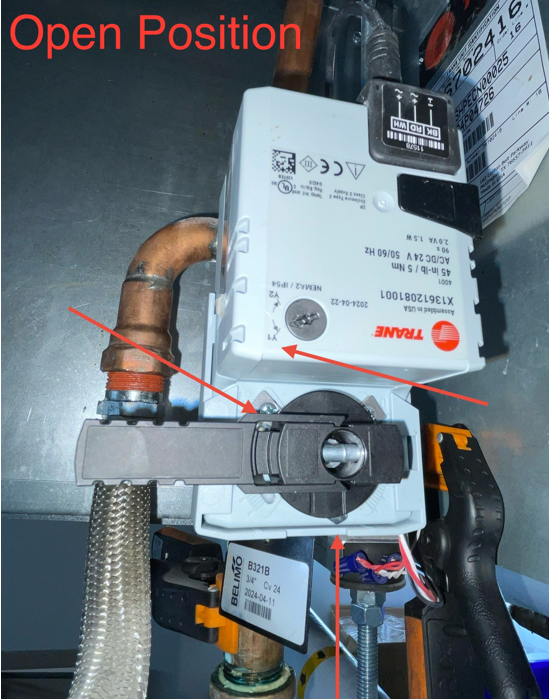

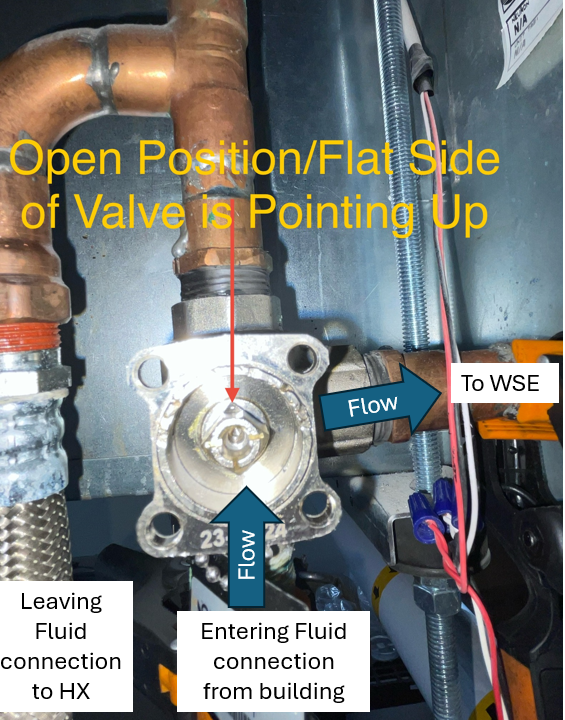

Waterside economizer operation (24V applied to the actuator open @ the black and white actuator leads)
Port AB opens to port B. Fluid flows through waterside economizer coil and then to the water in fitting feeding the unit heat exchanger.
