Low Ambient Control

Foundation™ Packaged Rooftop Units 15 to 25 Tons

Model Number: BAYLOAM305* Used With: 15 to 25 tons Foundation™ unit with Symbio™ controls

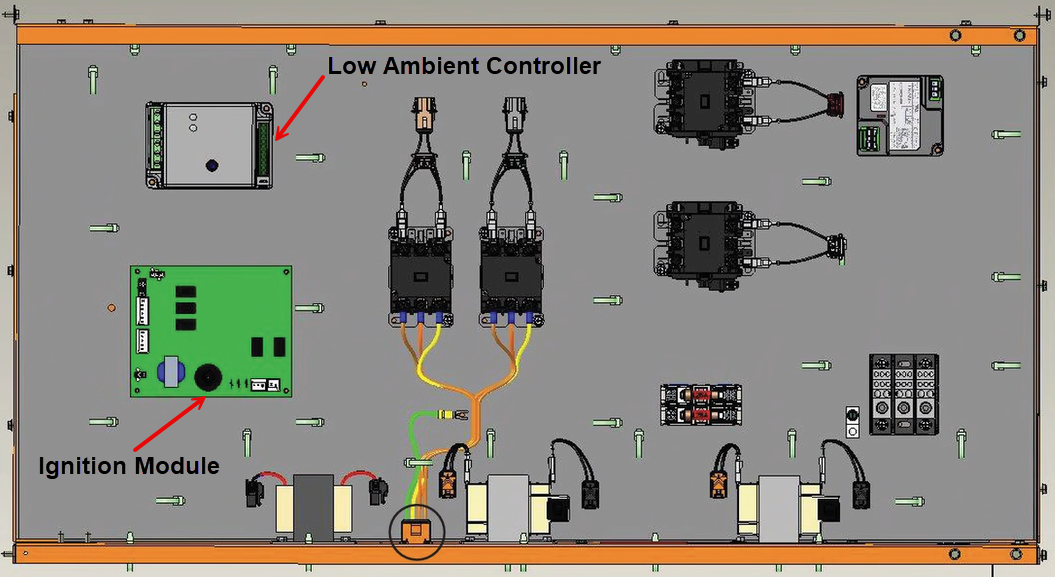

Panel mount connector location

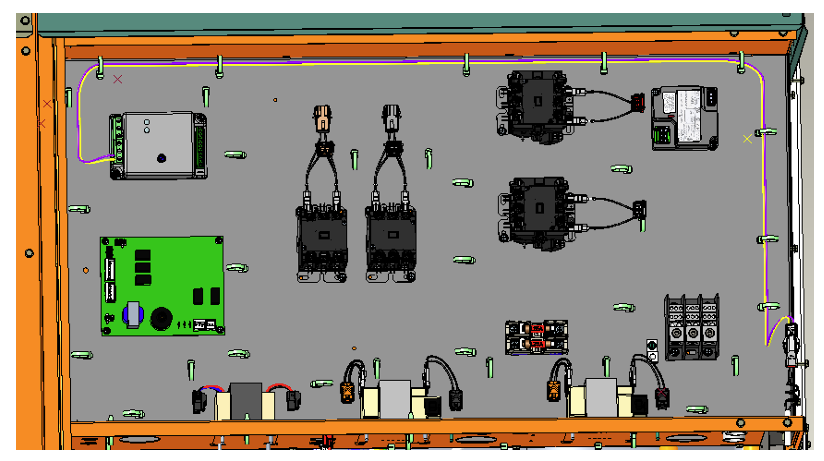

Control power harness

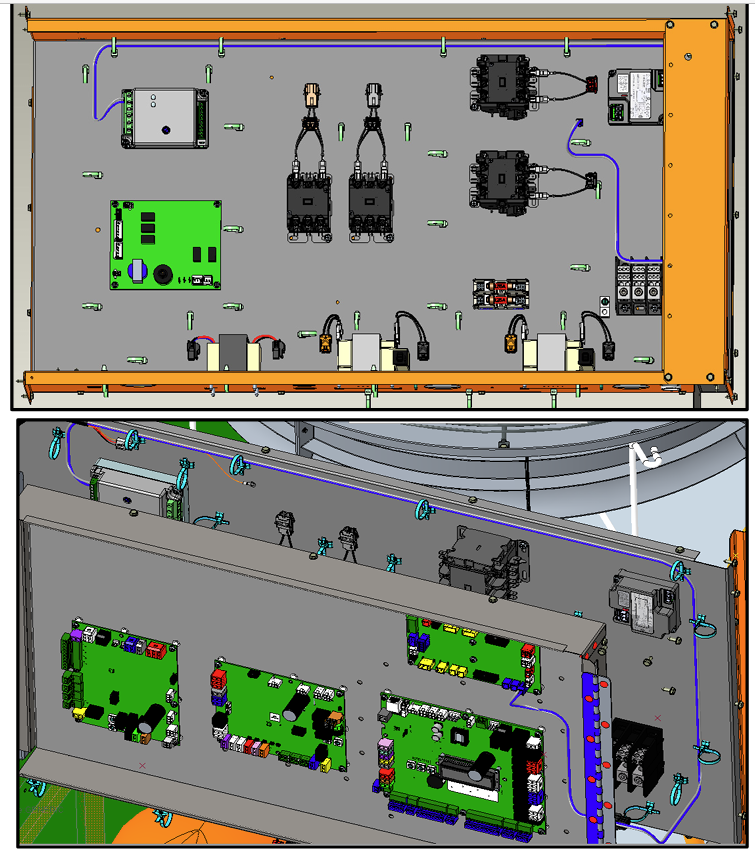

Temperature sensor harness

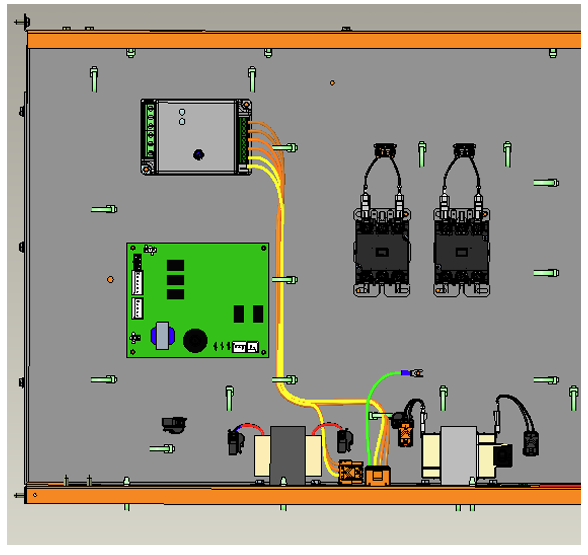

Outdoor motor power harness

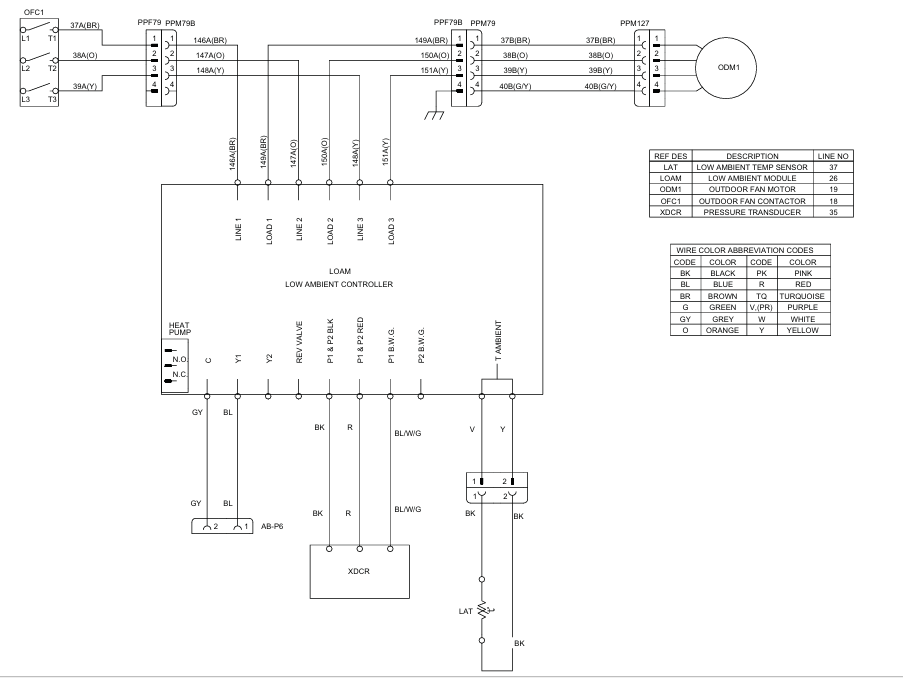

Wiring

Installation Instructions

Click the e-library symbol for the latest version of the Low Ambient control Installation Instructions.
