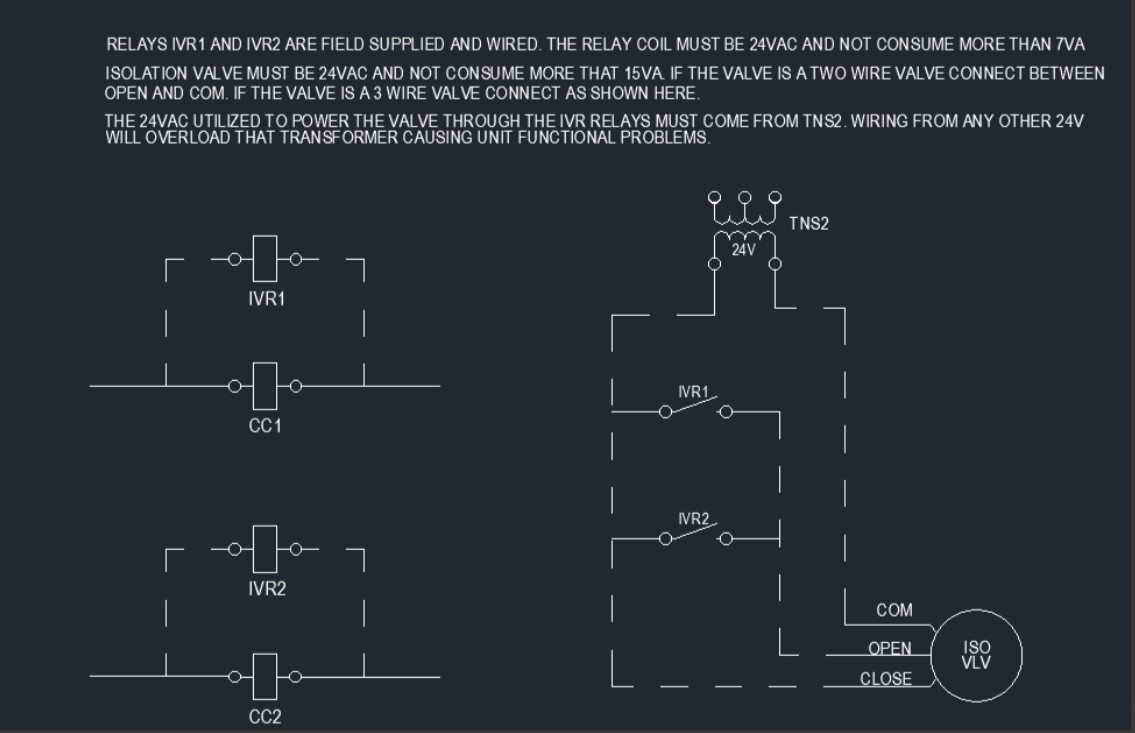

See unit diagrams in the product IOM for more detail on CC1, CC2, and TNS2 connection details.
IVR (Isolation Valve Relay) and ISO VLV (Isolation Valve) are field wired and supplied.
It's recommended that the isolation valve has a drive time of 15 seconds or less to full open.
