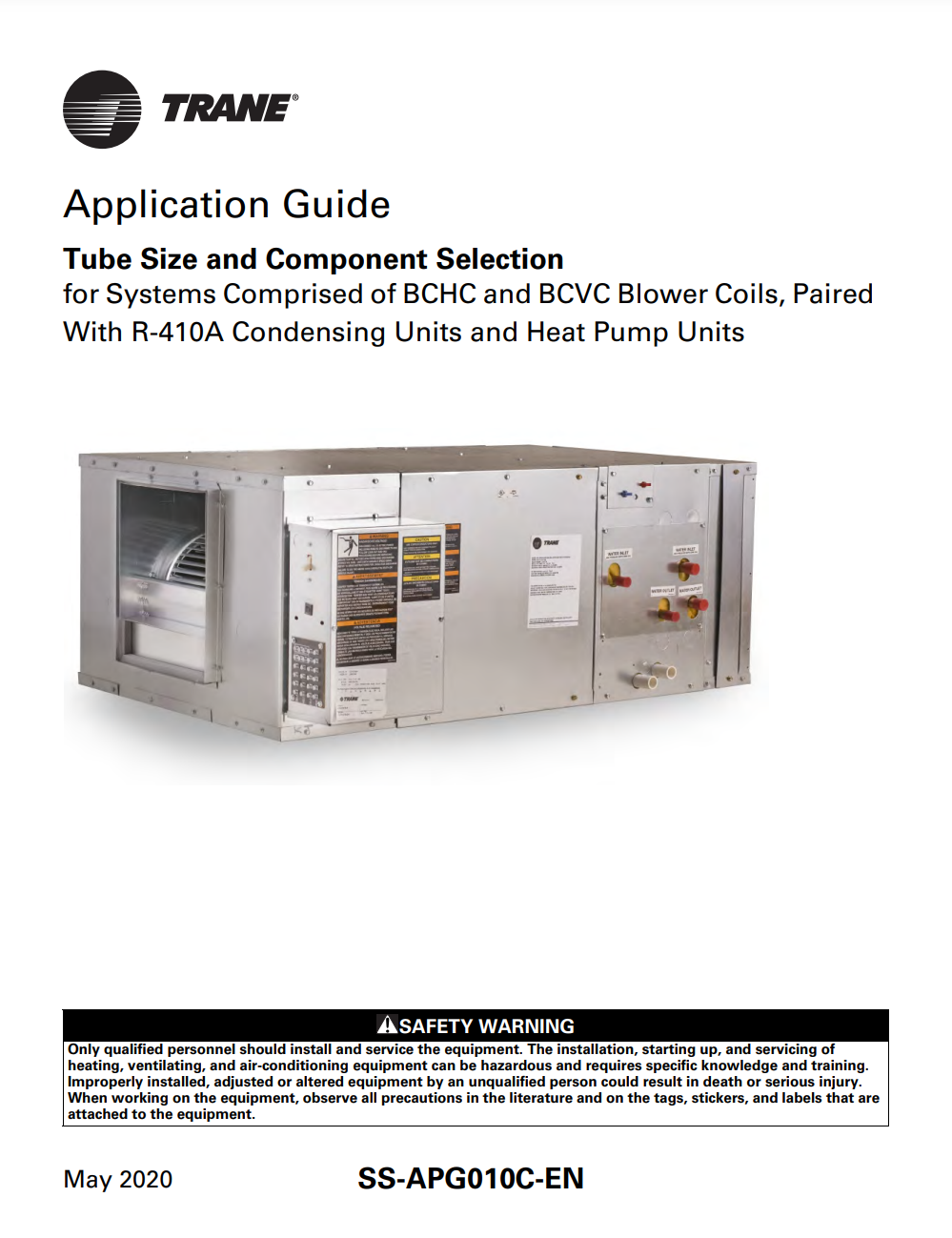

This application guide provides refrigerant piping guidelines for Trane® split system outdoor unit
models ranging in capacity from 1.5 to 10 tons when matched to Trane® indoor models BCHC and
BCVC 024 through 090. Use the information presented here to properly select interconnecting
piping and refrigerant components for these systems.
Click the e-library symbol for the latest version or download it at the end of the warning sign for the Tube Size and Component Selection for Blower Coils Paired with R-410A Condensing Units and Heat Pumps Application Guide.
WARNING:
Information in this article is intended for use by individuals possessing adequate backgrounds of electrical and mechanical experience and who comply with all federal, state, and local laws, rules, orders, or regulations related to the installation, service, or repair of a heating or central air conditioning product. Any attempt to install, service, or repair a heating or central air conditioning product may result in personal injury and/or property damage. The manufacturer or seller cannot be responsible for the interpretation of the information contained herein, nor can it assume any liability in connection with its use.
