Symbio Precedent Unit Configuration Breakdown

Find your configuration breakdown by unit model number.

Precedent Symbio 700 Configuration

Enter your model number to retrieve the configurations

Unit Items	Configuration Item
System Type:
Space Controller:
Refrigeration System:
Refrigerant:
Voltage:
Tonnage:
Refrigeration:
Efficiency:
Indoor Fan Type:
Indoor Fan Vfd:
Heat Pump Type:
Hot Gas Reheat:
Dehumidification Control:
Primary Heating Source:
Primary Heating Type:
Primary Heating Capacity:
Primary Heating Stages:
Secondary Heating Source:
Secondary Heating Type:
Secondaty Heating Capacity:
Secondary Heating Stages:
Outside Air:
Economizer Type:
Demand Controlled Ventilation:
Remote Minimum Position:
Space Pressure Control:
Clogged Filter:
FroStat:
Supply Air Smoke Detector:
Return Air Smoke Detector:
Condensate Overflow Switch:
Humidistat:
Humidity Sensor:
CO2 Sensor:
Discharge Temperature Sensor:
External Auto/Stop:
Ventilation Override:
Alarm Indicator:
Demand Management:
Supply Air Tempering:
Low Ambient Cool:

Disclaimer: The configurations and specifications provided are based on the Model Number indicated on the nameplate and reflect the state in which the unit was shipped from the factory. It is important to note that any field-installed accessories or modifications may alter the original configurations. Therefore, it is essential to verify the accuracy of the module number and any associated configurations when inputting or referencing this information. The manufacturer is not responsible for discrepancies or issues arising from modifications or inaccuracies in the module number input. Always consult the latest documentation or contact the manufacturer for the most accurate and up-to-date information.

Symbio 700 - Precedent or Odyssey - How to configure or edit Configurations using the Mobile Phone App

Summary:

The Symbio Service & Installation app lets users view and edit equipment settings. Follow the instructions below to view or edit the configurations of the Symbio 700 Unit Controller.

Phone App:

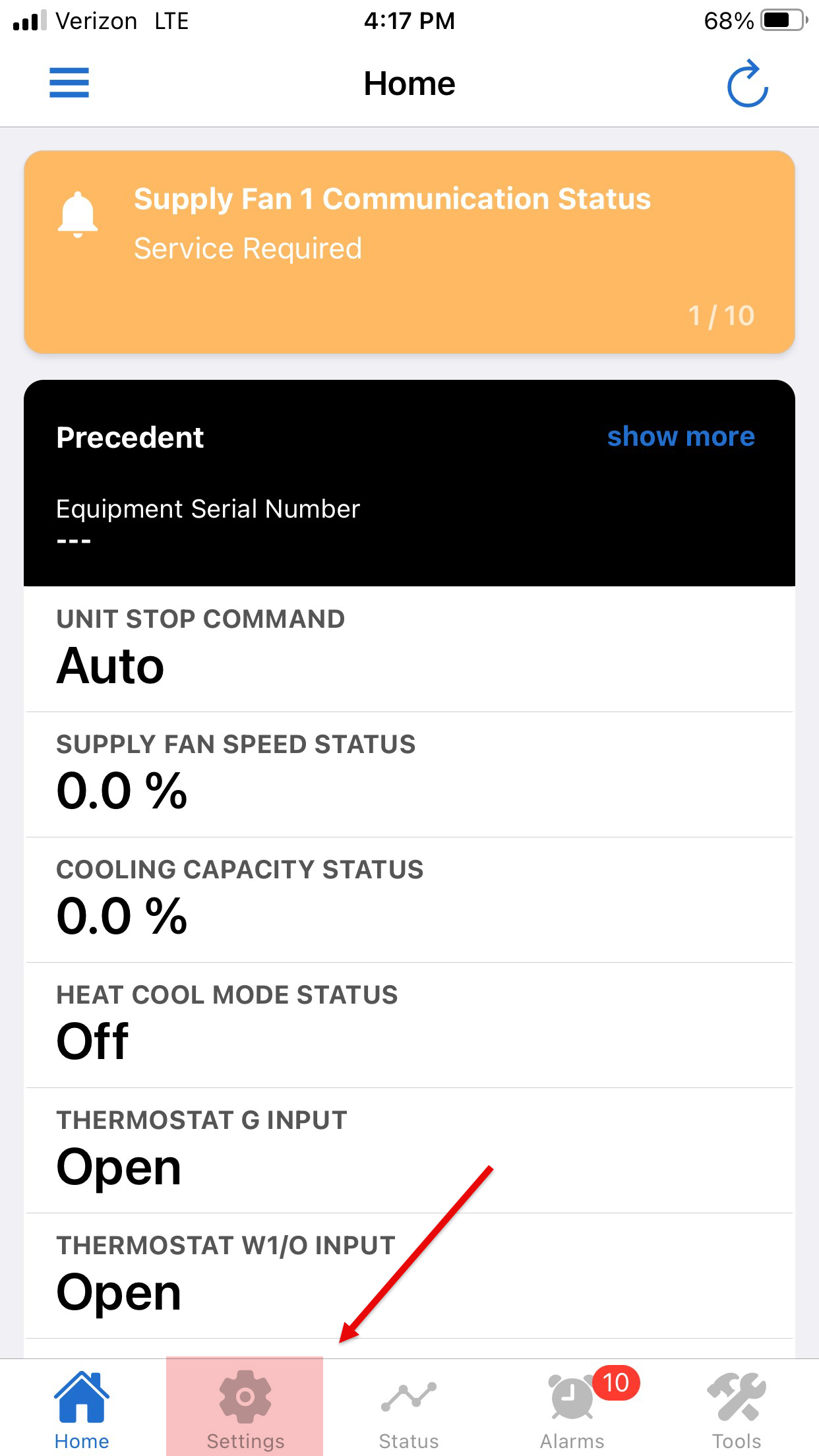

From the Home Page, go to the Setting Icon

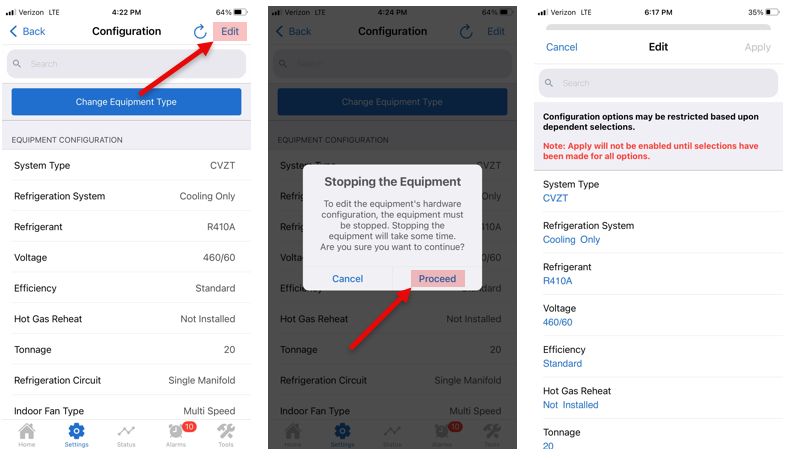

Click the View Configuration tab, This page does not auto-refresh; to manually refresh, swipe down or press refresh top right corner.

To edit the configuration, press the Edit button; on the next window; you'll see (Stopping the Equipment) press the Proceed button and start the equipment configuration.

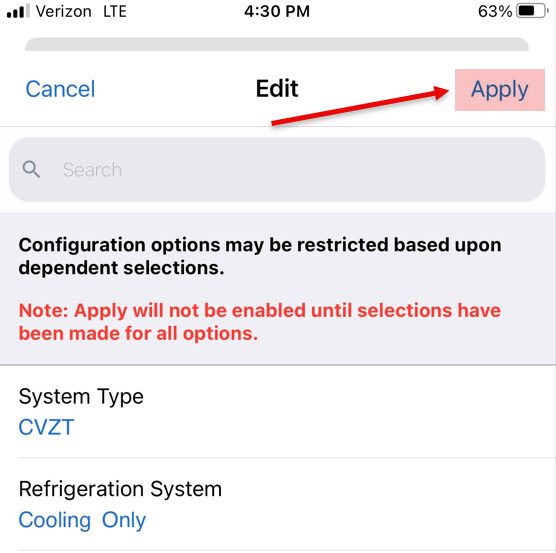

Note: The Apply button will be enabled once all options selections have been selected. Once completed, press the Apply or √ button on the top right corner.

Notes:

A complete configuration will be required during a Symbio 700 Unit Controller replacement. All the configuration items must be selected for the Apply button becomes active.

To configure the Economizer, Power Exhaust, or Clogged Filter Switch, click the link below.

Fresh Air Options Module Configuration and Installation Guide

The equipment can be configured through the Tracer TU, mobile service tool, or onboard interface.

Click the link below to Edit using Tracer TU

Tracer TU
