IE. Force Flo with main coil - Digit 18= W - Steam heat
Refer to Trane piping recommendations in the IOM.
Attachments show examples of the steam coil and internal steam flow.

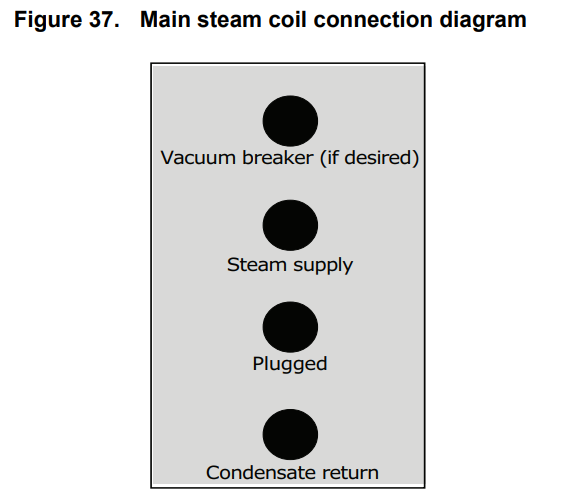

Steam coil Drawing and connection points
