Discussion:

Grounding Jumpers on Rockwell PF755 Drives for ACRA & CVHS/M model chillers

To avoid severe hardware damage in the presence of ground faults or lightning events, it is necessary to understand the power distribution source to the chiller and its grounding system.

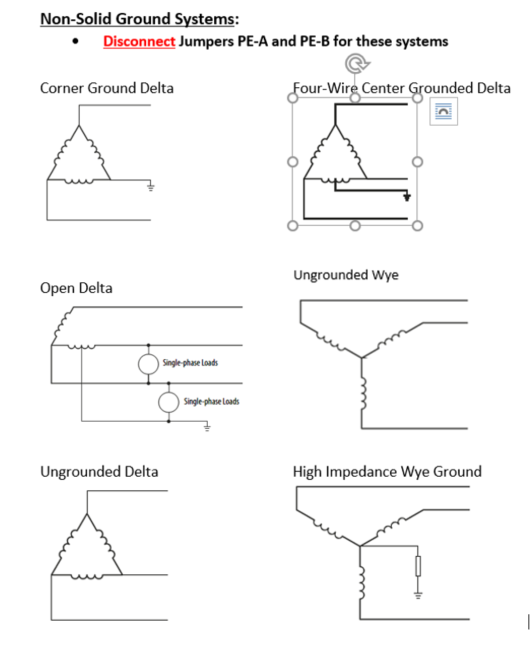

• For grounding systems which utilize corner grounded, high impedance grounded or ungrounded system, it is required to disconnect both MOV (PE-A) and Common Mode (PE-B) grounding jumpers.

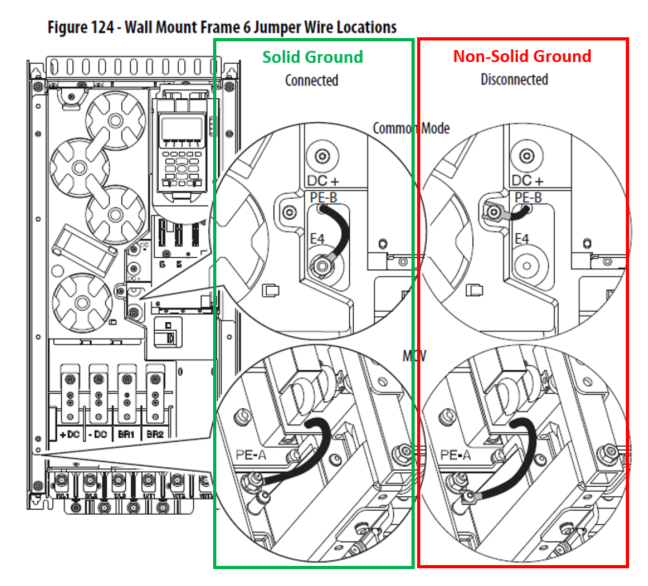

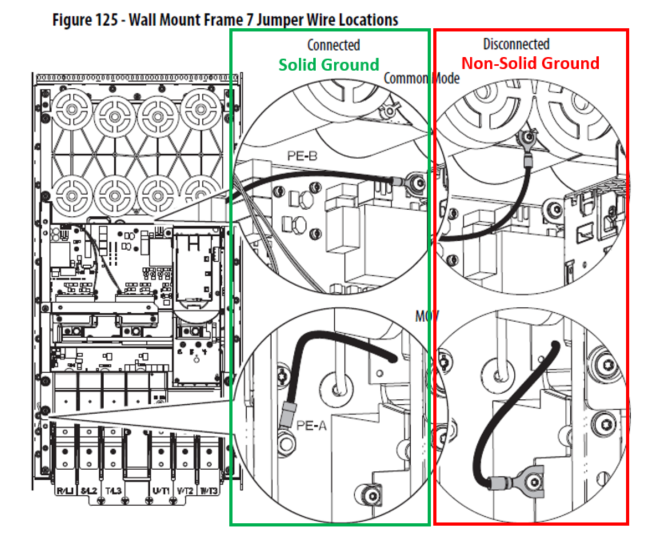

  See Figure 124 & 125 Disconnected positions.

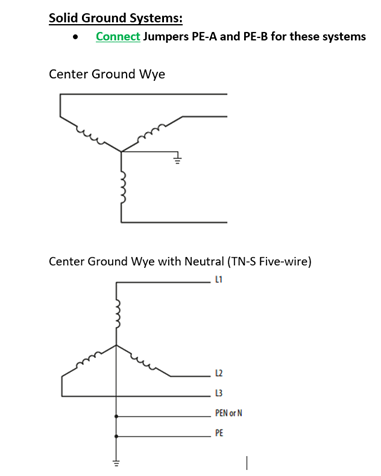

• For sites with solidly grounded systems, it is required to connect both MOV (PE-A) and Common Mode (PE-B) grounding jumpers. See Figure 124 & 125 Connected positions.

Additional Notes:

For additional questions, please contact Pueblo Technical Service

Original Document: DOC-169746
