NOTE: UPDATED SCHEMATICS TO ADD LDS WIRING FOR A2L COMPLIANCE. 05/14/2025.
UC600 SCHEMATICS UPDATED (REV D) TO INCLUDE LDS DETAIL ON THE 1W1 BOARD. 10/08/2025.
UPDATED ELECTRIC HEATER OPTION DIGIT 17 FROM DIGIT 21 FOR MORE RELIABLE SCHEMATIC LOOKUP RESULTS. 10/10/2025.
Problem:
The schematics are missing from the UCCA Performance Climate Changer Air Handler. I cannot find or regenerate the schematics using Comfortsite or Trane Select Assist.
Solution:
If you have the model number from the unit or know the fan configuration and/or controller option selection, you can use the decoder ring below or the attached spreadsheet UCCA-MODEL NUMBER DECODER can be used to determine the correct schematic for the technician or customer. On the spreadsheet copy and paste the full model number string in cell B1; schematic finder will yield the correct number to download in cell G3 if the unit has a factory installed UC600 or 1W1 board only.
Additional Resources:
USE FOR LOW VOLTAGE DRAWINGS, SYMBIO 500 - UCCA Symbio 500
USE FOR HIGH VOLTAGE SCHEMATICS - UCCA High Voltage Schematics
https://support.trane.com/hc/en-us/articles/16077871699341-UCCA-1W1-Control-Interface-Board
Example: Model# UCCA***C0G0R000*000000C*899AA00C00100001

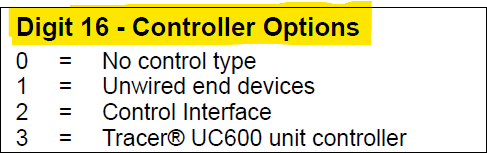

Decoder Ring for determining the correct UCCA Schematic
USE FOR LOW VOLTAGE DRAWINGS, UC600 & COMMON 1W1 BOARD SCHEMATICS
Low Voltage Drawings
Digit 16 = 2
Digit 24 = A, B, or E & Digit 17 = 0
196001410001 Rev F = Description = Low Voltage NO VFD No Electric Heat w Control Interface
Digit 24 = F & Digit 17 = 0
196008040001 Rev C = Description = Low Voltage VMI NO Electric Heat w Control Interface
Digit 24 = A, B, or E & Digit 17 = 1, 2, 4, or 5
196001410002 Rev F = Description = Low Voltage NO VFD with Electric Heat w Control Interface
Digit 24 = F & Digit 17 = 1, 2, 4, or 5
196008050001 Rev C = Description = Low Voltage VMI with Electric Heat w Control Interface
Digit 24 = C, or D & Digit 17 = 0
196001410003 Rev F = Description = Low Voltage VFD NO Electric Heat w Control Interface
Digit 24 = C, or D & Digit 17 = 1, 2, 4, or 5
196001410004 Rev F = Description = Low Voltage VFD with Electric Heat w Control Interface
Customer Interface / 1W1 board
Digit 16 = 3
Digit 24 = A, B, or E & Digit 17 = 0
196001410008 Rev D = Description = Low Voltage NO VFD NO Electric Heat & UC600
Digit 24 = F & Digit 17 = 0
196008060001 Rev B
Digit 24 = A, B, or E & Digit 17 = 1, 2, 4, or 5
196001410009 Rev D = Description = Low Voltage NO VFD with Electric Heat & UC600
Digit 24 = F & Digit 17 = 1, 2, 4, or 5
196008070001 Rev B = Description = Low Voltage VMI Electric Heat & UC600
Digit 24 = C, D & Digit 17 = 0
196001410010 Rev D = Description = Low Voltage VFD NO Electric Heat & UC600
Digit 24 = C, D & Digit 17 = 1, 2, 4, or 5
196001410011 Rev D = Description = Low Voltage VFD with Electric Heat & UC600
WARNING:
Information in this article is intended for use by individuals possessing adequate backgrounds of electrical and mechanical experience and who comply with all federal, state, and local laws, rules, orders, or regulations related to the installation, service, or repair of a heating or central air conditioning product. Any attempt to install, service, or repair a heating or central air conditioning product may result in personal injury and/or property damage. The manufacturer or seller cannot be responsible for the interpretation of the information contained herein, nor can it assume any liability in connection with its use.
