Problem:
The schematics are missing from the UCCA Performance Climate Changer Air Handler. I cannot find or regenerate the schematics using Comfortsite or Trane Select Assist.
Note: With the release of Symbio 500, the TSA output has been improved to hopefully provide a more consistent low voltage schematic that matches the selection.
Solution:
If you have the model number from the unit or know the fan configuration and/or controller option selection, you can use the decoder ring below or the attached spreadsheet UCCA-MODEL NUMBER DECODER to determine the correct schematic for the technician or customer. On the spreadsheet copy and paste the full model number string in cell B1; schematic finder will yield the correct number to download in cell G3 if the unit has a factory installed Symbio 500.
Additional Resources:
USE FOR LOW VOLTAGE DRAWINGS - UC600 & COMMON 1W1 BOARD SCHEMATICS
USE FOR HIGH VOLTAGE SCHEMATICS - UCCA High Voltage Schematics
Example: Model# UCCA**C0G0R0004000000C*899AA00C00100001
Decoder Ring for determining the correct UCCA Schematic

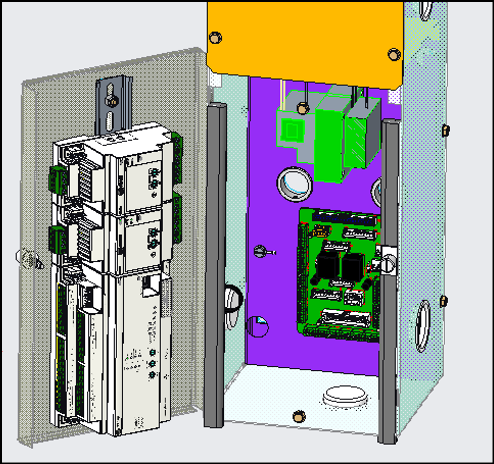

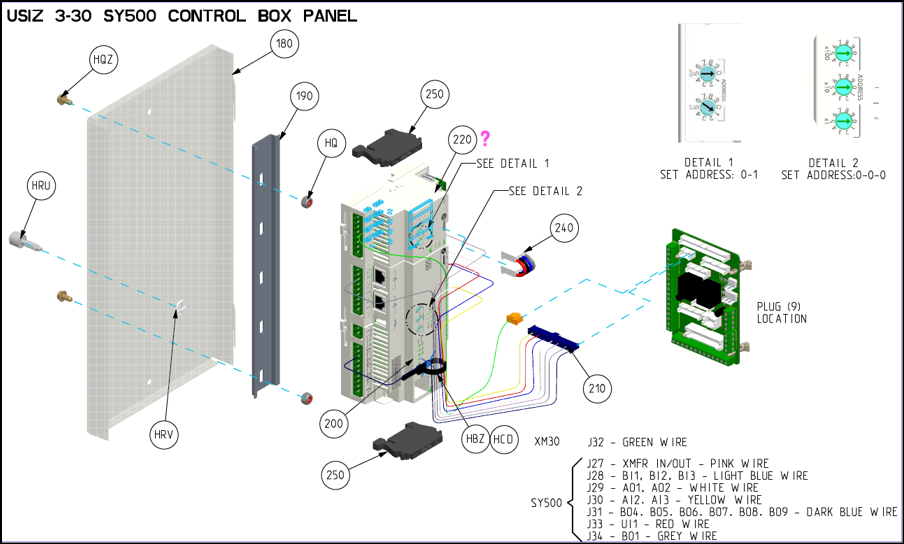

USE FOR LOW VOLTAGE DRAWINGS SYMBIO 500 SCHEMATICS

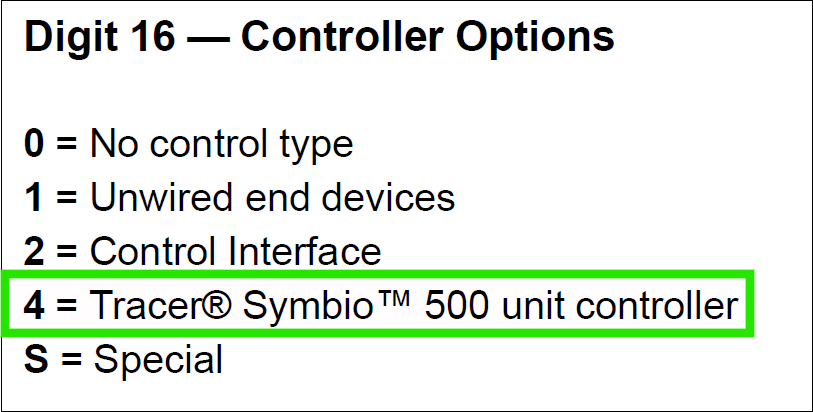

Digit 16 = 4

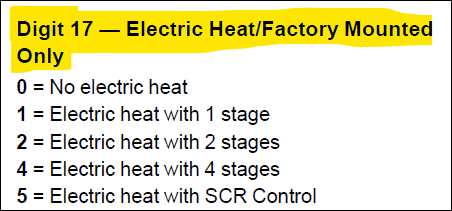

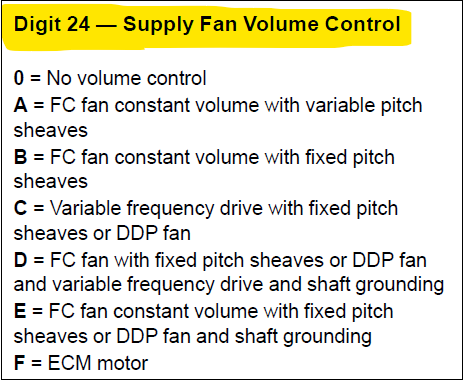

Digit 24 = F & Digit 17 = 0
19600916 REV D = Description = Low Voltage VMI NO Electric Heat & SY500
Digit 24 = F & Digit 17 = 1, 2, 4, or 5
19600917 REV D = Description = Low Voltage VMI Electric Heat & SY500
Digit 24 = A, B, or E & Digit 17 = 0
19600918 REV D = Description = Low Voltage Single Motor NO VFD NO Electric Heat & SY500
Digit 24 = A, B, or E & Digit 17 = 1, 2, or 5
19600919 REV D = Description = Low Voltage Single Motor NO VFD w Electric Heat & SY500
Digit 24 = C, D & Digit 17 = 0
19600920 REV D = Description = Low Voltage Single Motor VFD NO Electric Heat & SY500
Dual Motor for DDP array only
19600922 REV D = Description = Low Voltage Dual Motor VFD NO Electric Heat & SY500
Digit 24 = C, D & Digit 17 = 1, 2, 4, or 5
19600921 REV D = Description = Low Voltage Single Motor VFD with Electric Heat & SY500
