Error Code Pb
Summary:
Outdoor DC motor module protection
Possible Cause:
- The speed of DC motor is abnormal
- Outdoor DC motor fault
- Communication fault between DC motor DC Fan Module and Main Board
Troubleshooting:

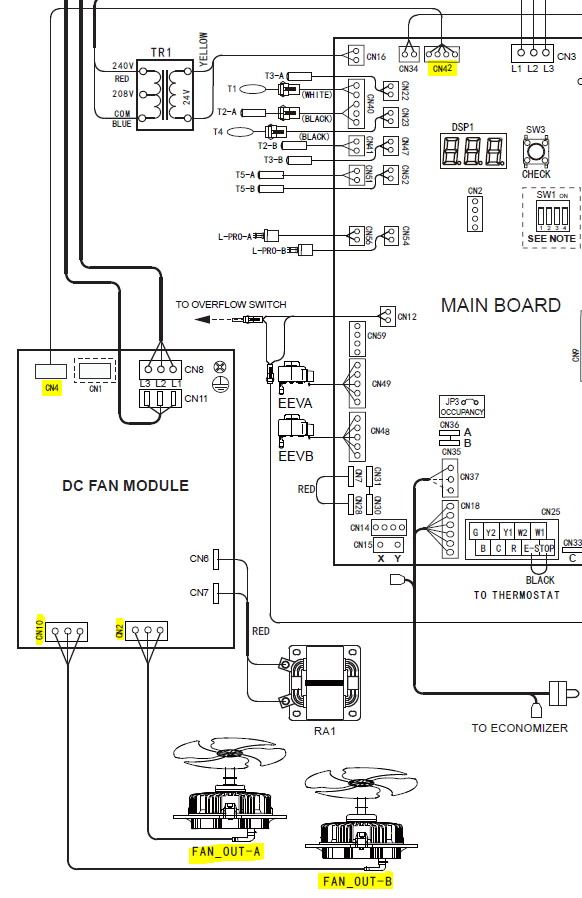

- Verify that CN10 and CN2 are connected and/or connected securely - Correct connection

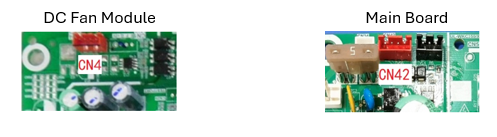

- Verify the communication wire between the DC motor DC Fan Module and the Main Board (CN4 to CN42) - Correct connection
- Is the communication wire open - Replace the wiring
- Is the motor wires open or is the motor faulty - Replace the motor
- Verify the fan blade for imbalance or not rotating properly - Replace the fan blade
Below you can download the wiring diagram for 460V or 230V
