Low Leak Economizer Jade Actuator Address
Summary:
Trane Foundation low-leak economizers come with the Honeywell Jade controller with Sylk-enabled communication. The actuator must be addressed to Direct operation with Address 11 for proper operation.
Address:

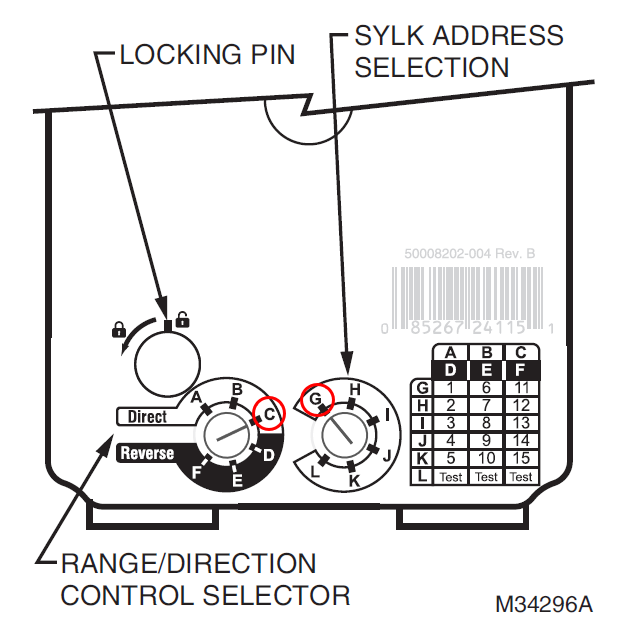

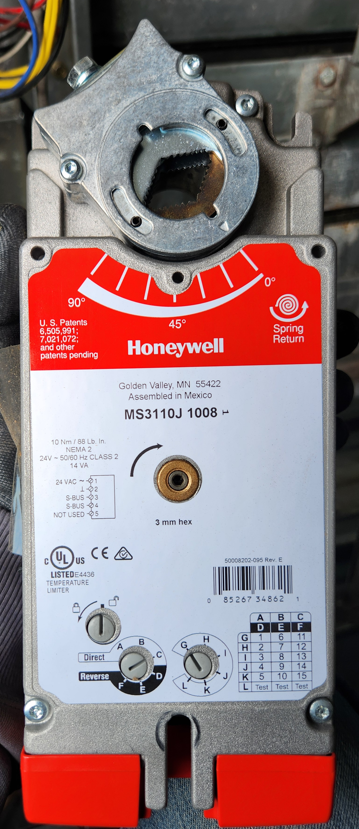

To set the direction and address for the MS3110J1008 actuator, do the following and see the image below:
- Set the Range/Direction Control Selector to "C"
- Set the Sylk Address Selection to "G"

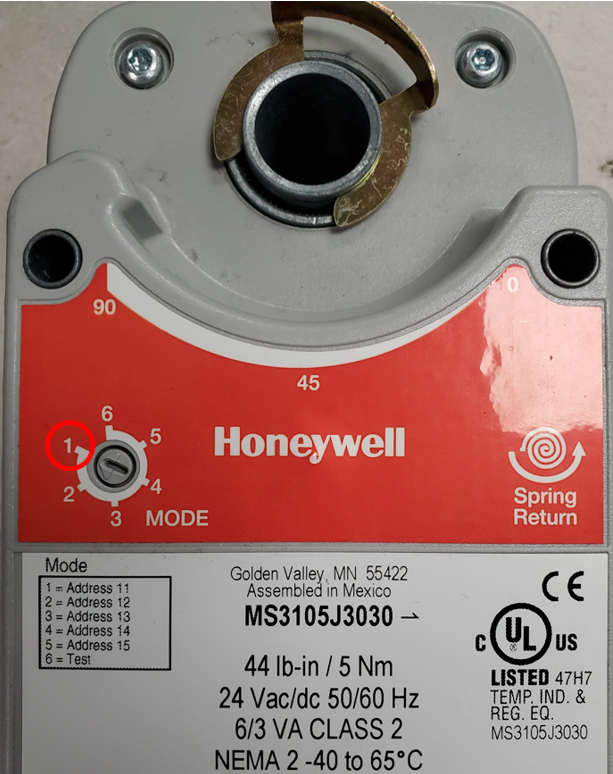

To set the address on the MS3105J3030, change the address dial to position 1, as shown in the image below.
Verify correct wiring on the actuator is also recommended prior to testing operation.
