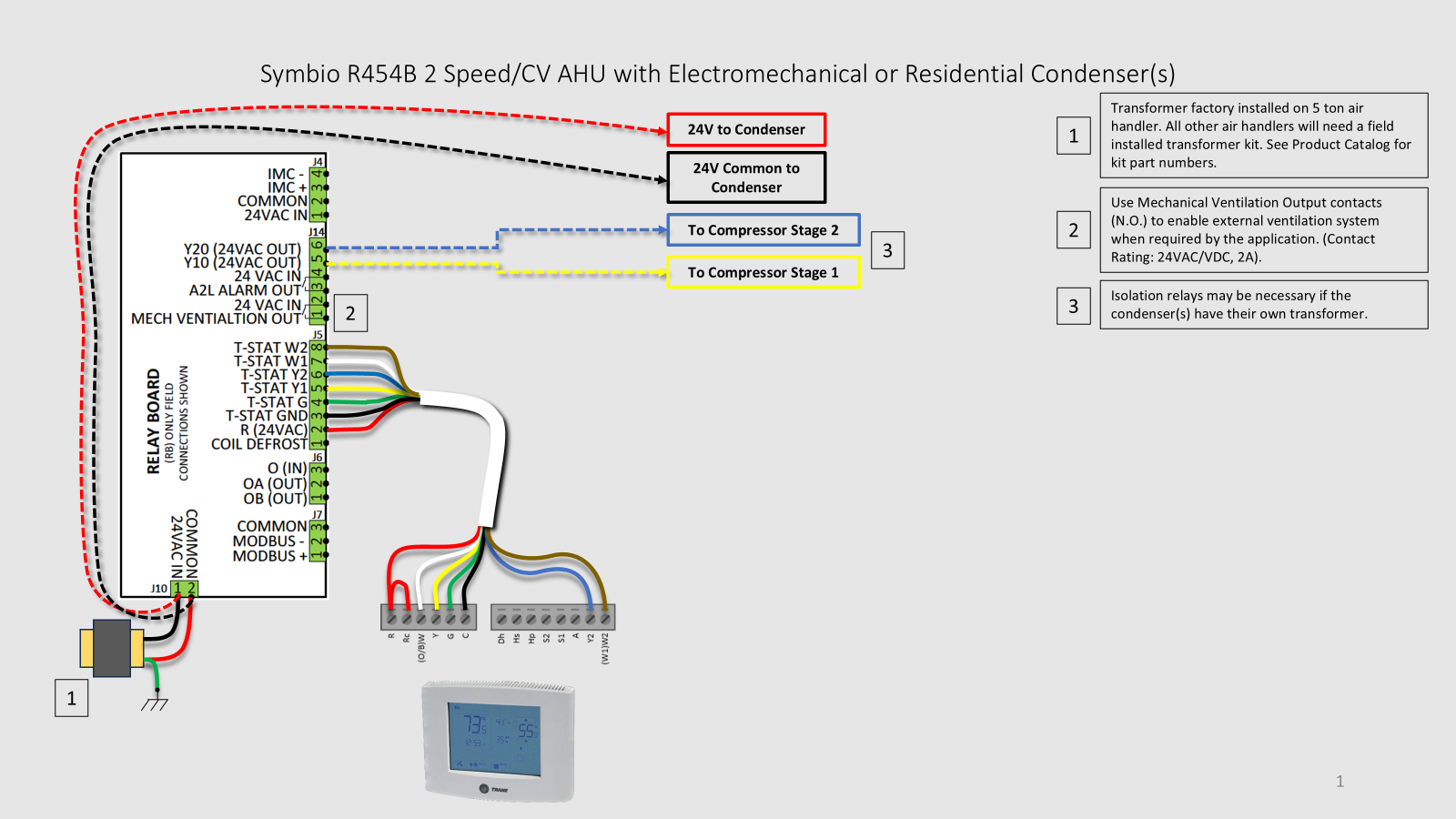

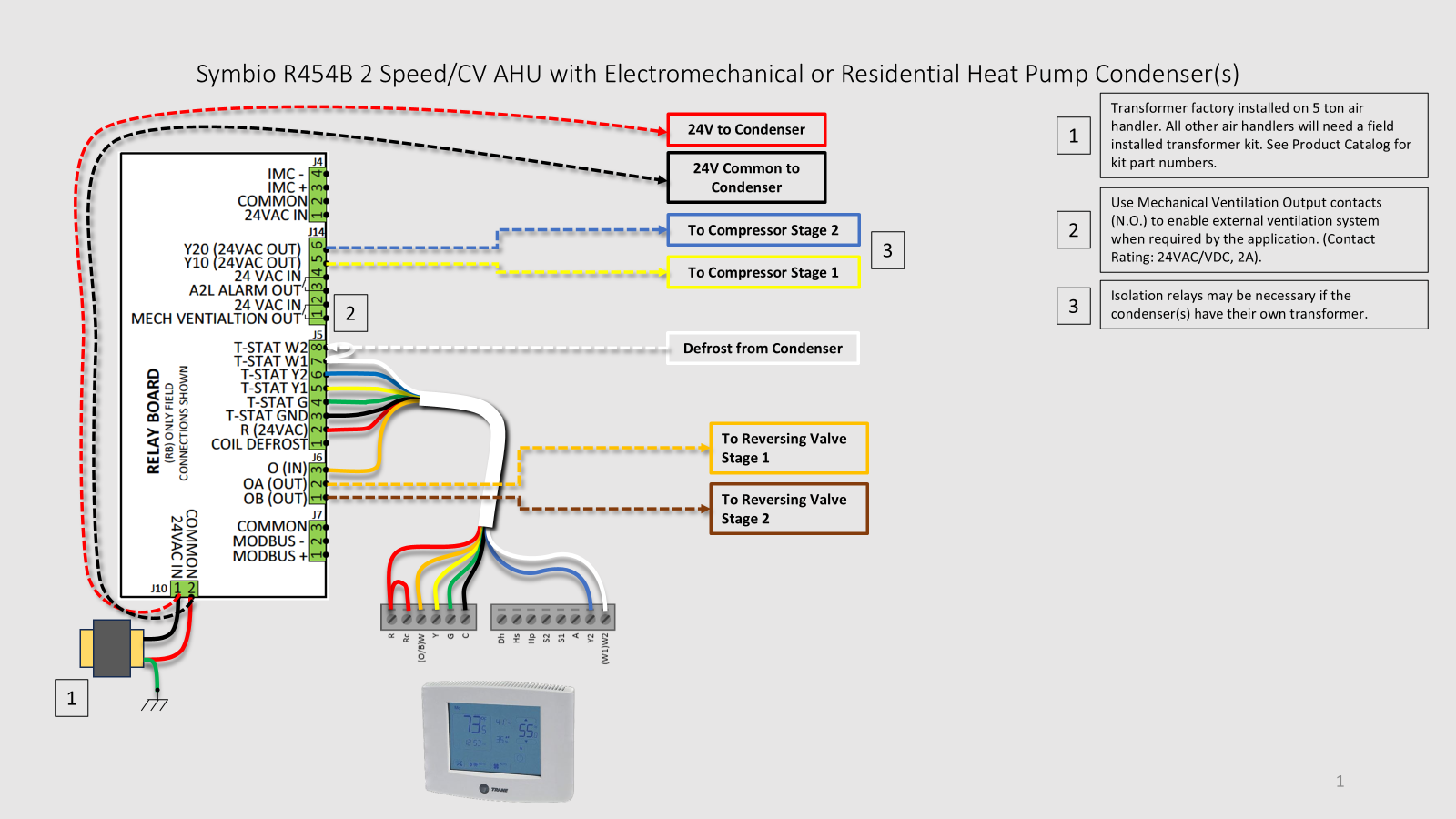

Below are examples of the low voltage wiring for Odyssey A2L air handlers and an electromechancial condenser(s).
Notes:
The 2 speed Electromechanical air handler (Model 15th digit = "C") operates with relays internal to the Relay Board. When you apply 24 vac to the G input on the J5 plug, the supply fan will start in low speed. The supply fan will go to full speed by additionally applying 24 vac to the Y2, W1, or W2 terminals. Constant volume operation can be obtained by setting the VFD parameter 4-12 Motor Speed Low Limit to match parameter 4-14 Motor Speed High Limit.
WARNING:
Information in this article is intended for use by individuals possessing adequate backgrounds of electrical and mechanical experience and who comply with all federal, state, and local laws, rules, orders, or regulations related to the installation, service, or repair of a heating or central air conditioning product. Any attempt to install, service, or repair a heating or central air conditioning product may result in personal injury and/or property damage. The manufacturer or seller cannot be responsible for the interpretation of the information contained herein, nor can it assume any liability in connection with its use.
