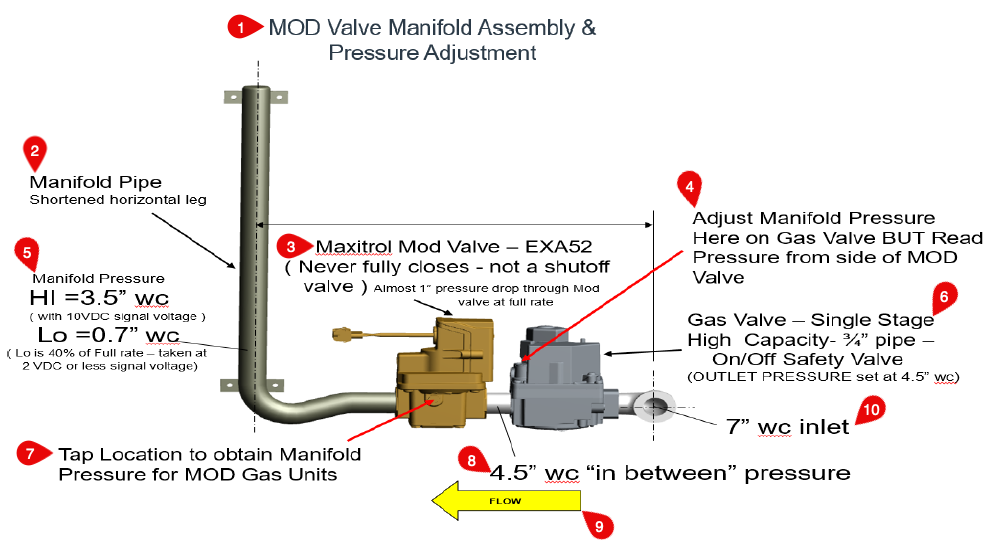

Diagram 1. Process
Text found in the image above.
- MOD Valve Manifold Assembly & Pressure Adjustment
- Manifold Pipe
Shortened horizontal leg. - Maxitrol Mod Valve - EXA52
(Never fully closes - not a shutoff valve)
Almost 1' pressure drop through Mod Valve at full rate - Adjust Manifold Pressure Here on Gas Valved BUT Read Pressure from side of MOD Valve
- Manifold Pressure
Hi = 3.5" wc (with 10 VDC signal voltage)
Lo = 0.7" wc (Lo is 40% of Full rate - taken at 2 VDC or less signal voltage) - Gas Valve - Single Stage High Capacity - 3/4" pipe - On/Off Safety Valve
(Outlet Pressure set at 4.5" wc) - Tap Location to obtain Manifold Pressure for MOD Gas Units
- 4.5" wc "in between" pressure
- Flow (pointing to the left)
- 7" wc inlet
