Gas Heat Supply Airflow Low Limit
- The unit will error out if the Supply Airflow is<175CFM/Ton for more than 5 minutes
- A 5-minute timer will only reset for loss of active heating call or airflow increases ≥ 175CFM/Ton
- Heat will be discontinued and Manual Lockout Diagnostic will be set

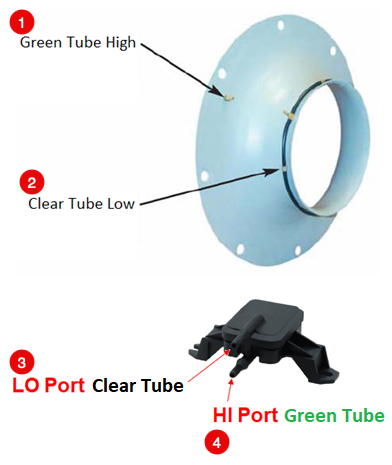

Check the transducer tubing
Text in the image above:
- Green Tube High
- Clear Tube Low
- Low Port Clear Tube
- Hi Port Green Tube
