Voyager 2 Combustion Fan Power Wiring

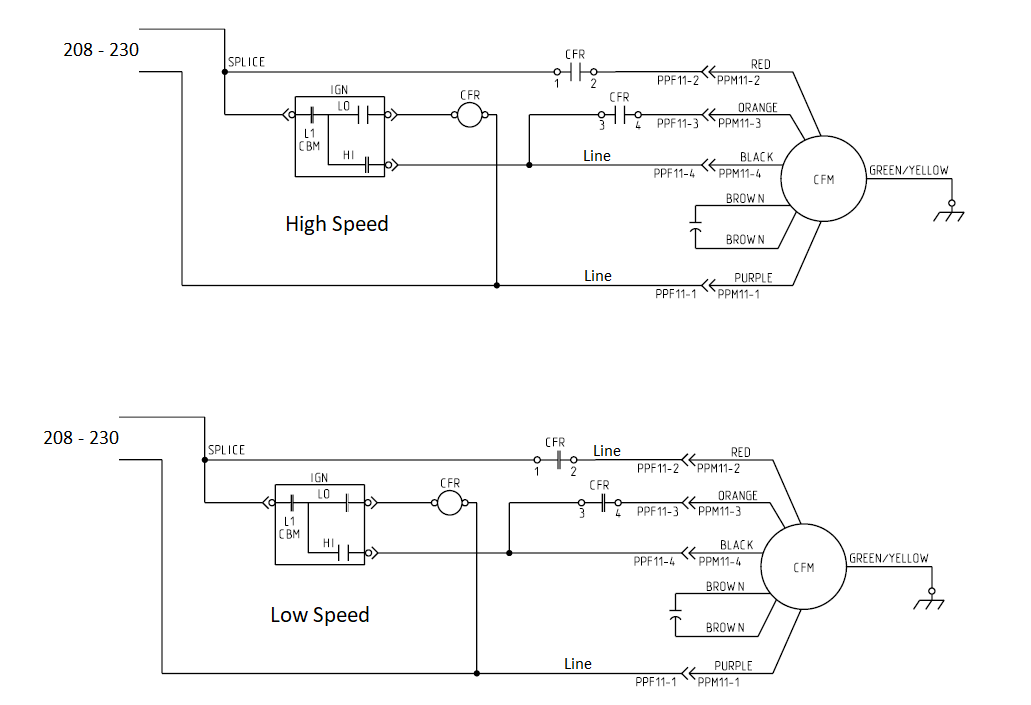

Below is an image of how the Voyager 2 Combustion Fan Motor gets power in High speed and Low Speed.
Note: The CFR Relay pulls in in Low Speed Only.
