Summary:

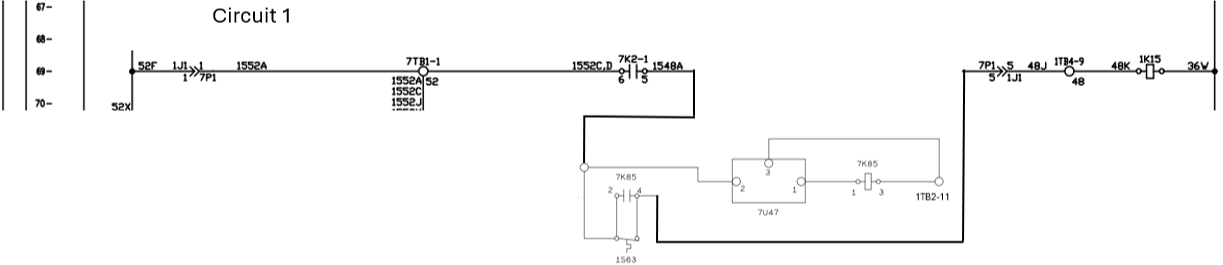

The purpose of this article is to illustrate how the frostat devices terminate on a unit retrofitted with a DDC kit. The wiring termination differs slightly based on tonnage.
Reference the as-built supplied with the kit or at RAUJ -DDC UC600 Controls (BCI) Kit – Trane Commercial HVAC Help Center for complete wiring information.
Tonnage: 20-30
Tonnage: 40-60
Tonnage: 80-120
