Purpose
This guide directs users on how data logs can be retrieved off of a Symbio controller using the Symbio Web User Interface (UI) on Symbio 400-B and 500 controls.
Trends must first be established using Tracer TU. See How do you setup data logs using Tracer TU?
Tools Required
Computer with a web browser

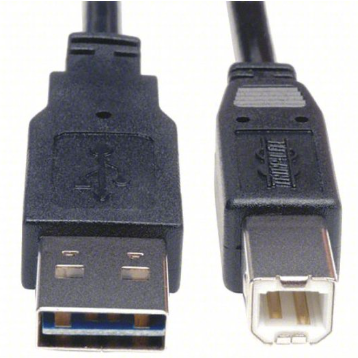

USB A to B cable
Resolution
1. |
Using the USB A to B cable, connect your PC to the USB port on the Symbio controller. | |
2. |
Open a web browser and enter 198.80.18.1 into the address field. Select Login and follow the prompts. | |
3. |
Select Data Logs from the panel to the left. | |
4. |
Select the data logs you would like to retrieve using the check boxes provided.
|
|
5. |

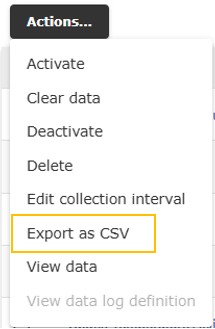

Select the Actions... button followed by Export as CSV | |
6. |
Data collection is complete. Locate the .CSV file in your web browsers default download's location. |
WARNING:
Information in this article is intended for use by individuals possessing adequate backgrounds of electrical and mechanical experience and who comply with all federal, state, and local laws, rules, orders, or regulations related to the installation, service, or repair of a heating or central air conditioning product. Any attempt to install, service, or repair a heating or central air conditioning product may result in personal injury and/or property damage. The manufacturer or seller cannot be responsible for the interpretation of the information contained herein, nor can it assume any liability in connection with its use.
