Service Alert Summary:

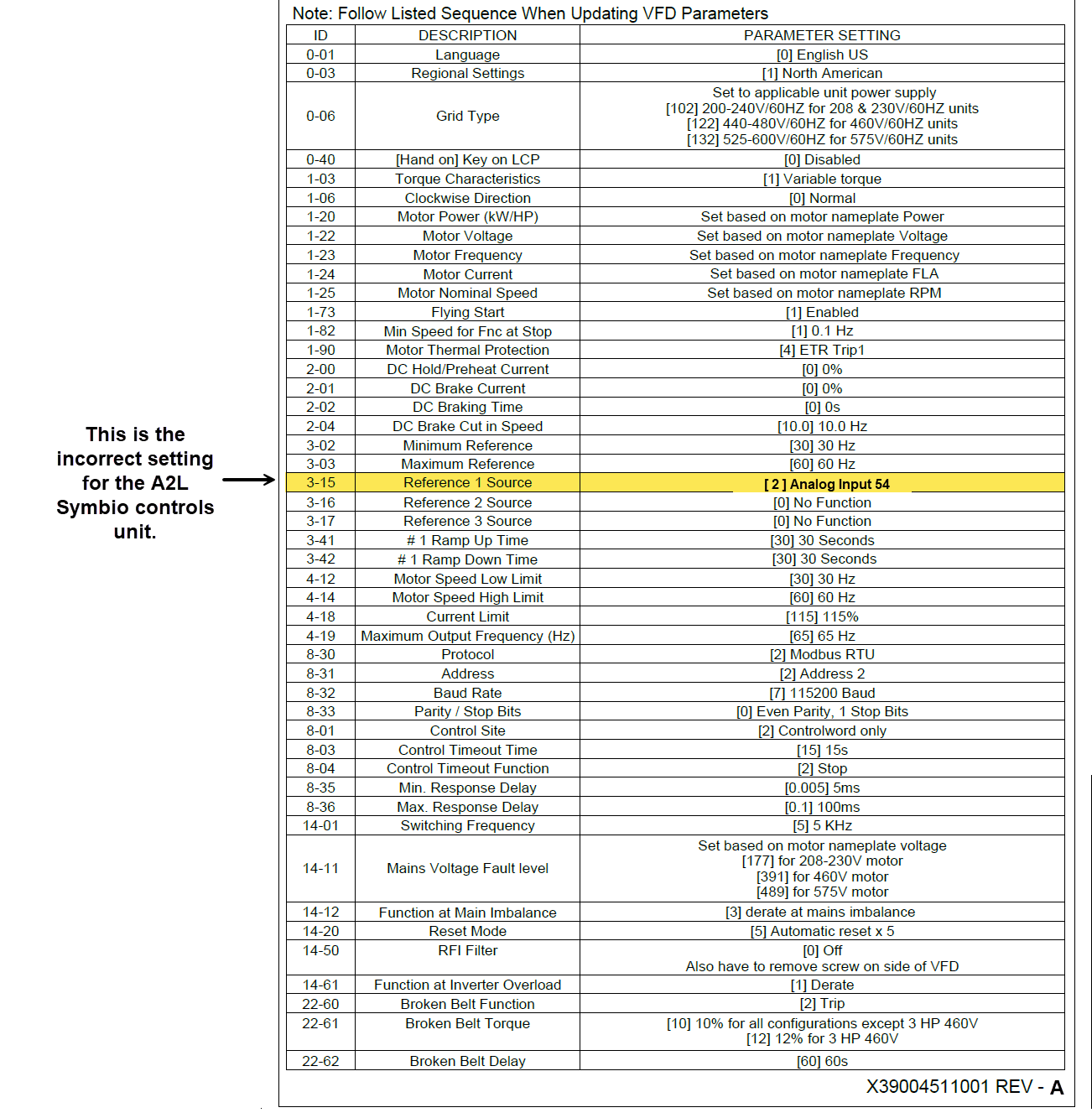

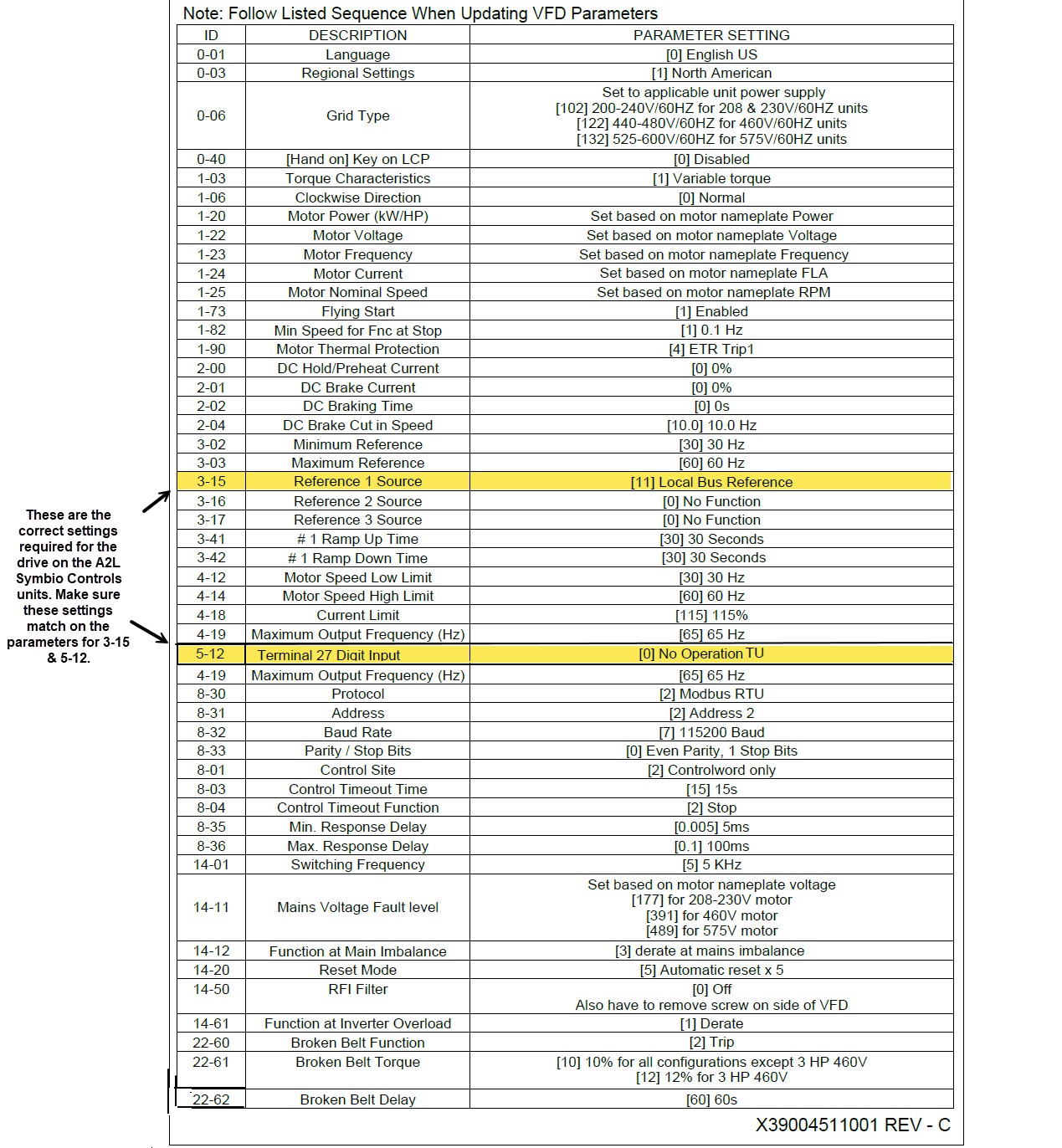

On A2L units we noticed that the VFD label (X39004511001) which shows the control parameters for the unit have been installed with a previous revision A instead of revision C. This information is located on the bottom right corner of the VFD parameters list.
Link to contact Tech Support for help Link for info about Service Alerts
What are known Diagnostics or Symptoms:

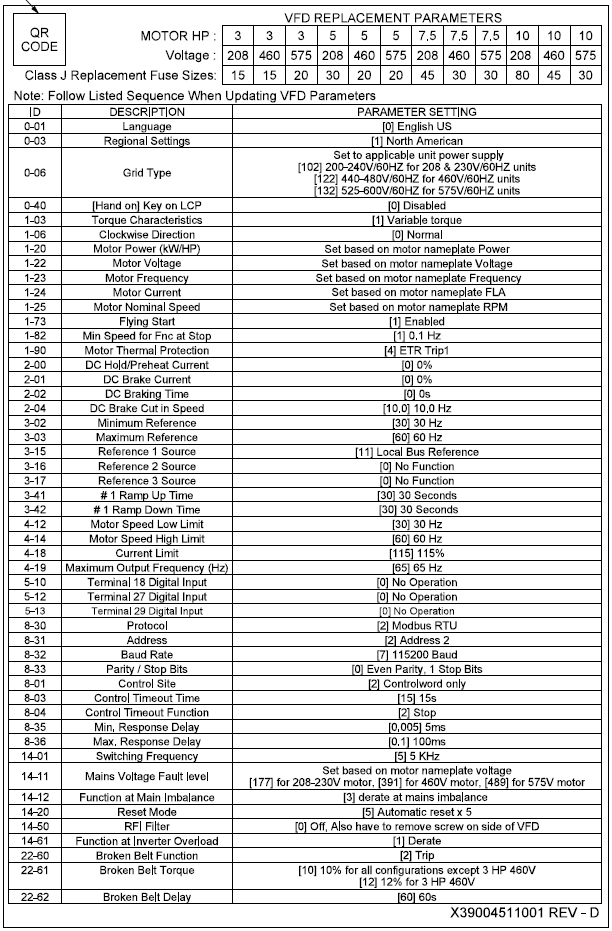

When drives are replaced in the field the parameters will required updating. The current parameter chart may be incorrect. The modification on the previous revision was on the step: Reference 1 source. Each revision change the next step:
Product Family: Large Foundation
Models effect:
EDK180-300
GDK180-300
Model Prefix(s) & Configuration details: Symbio A2L units only
Serial range: 24369843JA - Current
What actions can I take now:
- The drive was programmed correctly in the factory
- No reprogramming required
- This action is to correct the VFD parameter information only
- The purpose of this Service Alert is mainly directed at future VFD replacements and possible mis-programming based on current VFD label within unit
Is there a related published service bulletin for this issue?
- At this time, we do not expect any bulletin will be published.
Are WMS(Warranty Management System) claims allowed for this issue?
- Claims for this issue are currently not allowed.
Does the above information indicate the final resolution?
- Yes, final resolution has been confirmed per above.
What can I tell my customer?
The unit operation is not affected. The VFD parameter label should be replaced to prevent future issues with replacement parts.
For label replacement contact:
Alejandra Moreno- Field Quality Engineer
Luis Saldivar- Operations Leader
