Dehumidification Control Configuration
Notes
- Dehumidification control is a mode of Cooling when hot gas reheat is configured.
- Relative Humidity uses a humidity sensor connected to UC-J23.

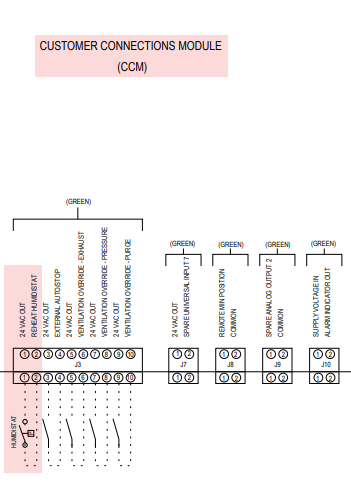

- Humidistat connects to the Customer Connection Module (CCM) on CCM-J3 terminals 1 and 2.

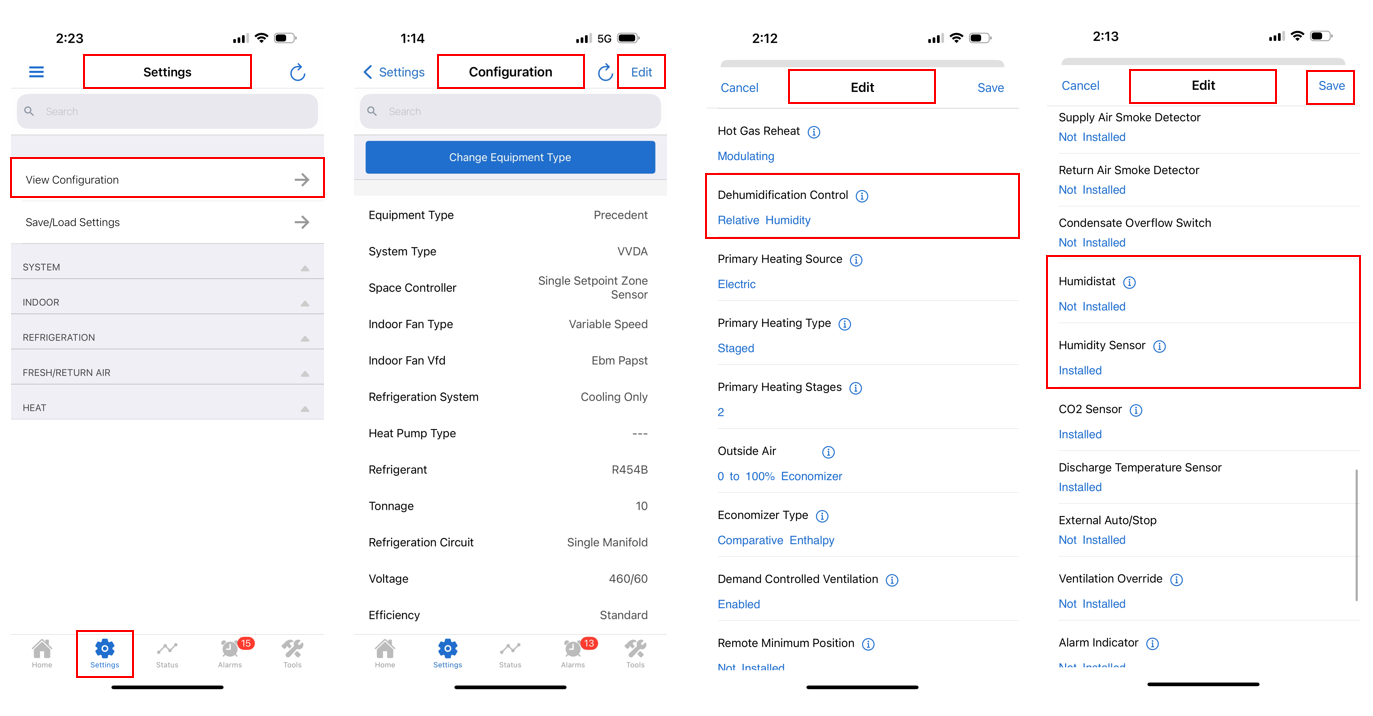

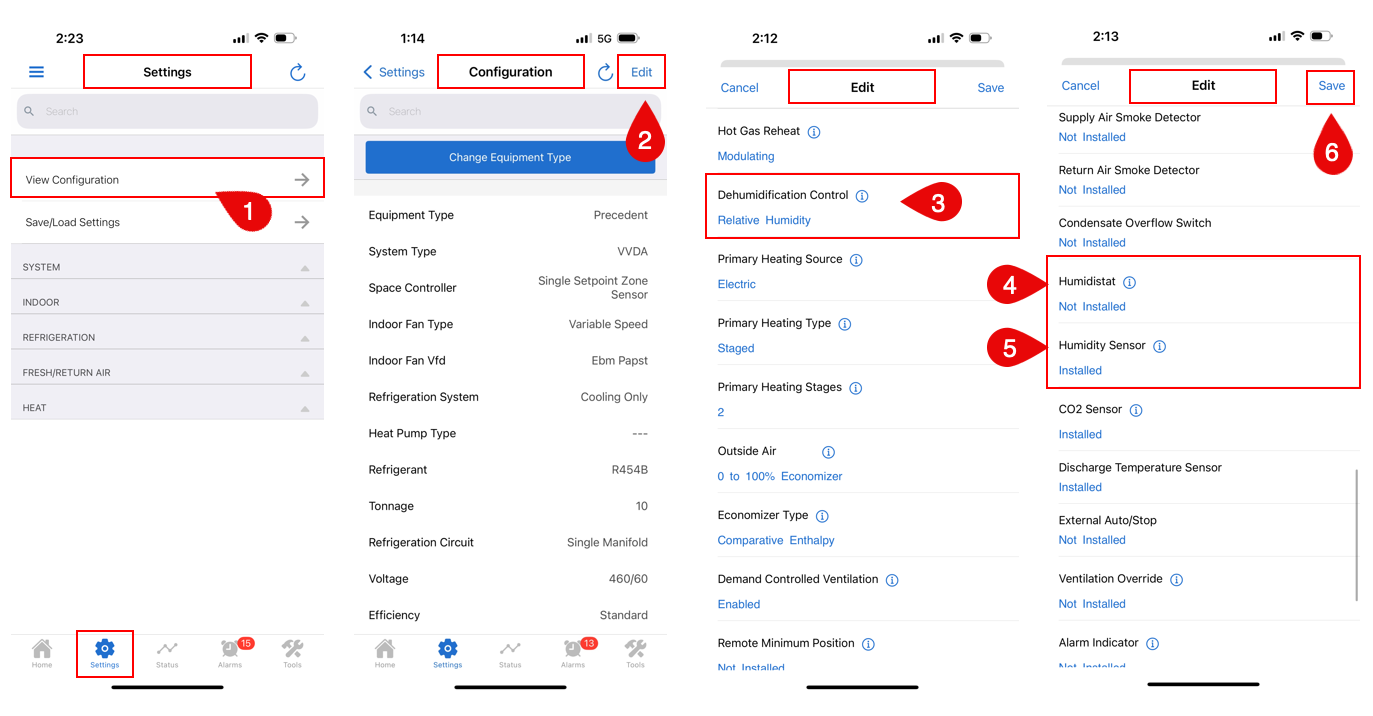

Configure as follows
- Go to Settings> View Configuration
- Top right-corner Edit
- Change Dehumidification Control from Relative Humidity to Humidistat
- Change or verify the Humidistat is to Install
- Change Humidity Sensor to Not Install
- Press Save on the top right-corner to save the configurations
